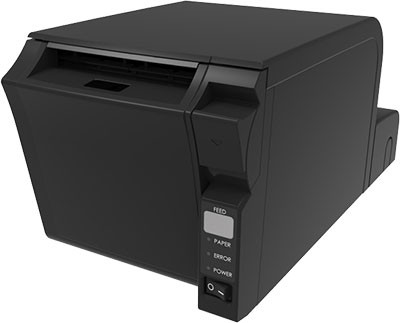

Pioneer PIONEER-STEP-5E Receipt Printers

The Pioneer STEP-5e Receipt Printer is engineered for efficiency in high-volume retail and hospitality settings, printing at an impressive speed of up to 300 mm/sec. With a robust autocutter life of 2 million cuts, this printer ensures that it can keep pace with your busy operations. Its versatile connectivity options, including USB, Ethernet, WiFi, and Bluetooth, allow seamless data transfer for mPOS environments. The STEP-5e not only excels in printing receipts but also enables the creation of engaging QR codes for promotions and surveys, adding value to your customer interactions.

Key Features:

• Very high-speed printing: 300 mm/sec
• Connectivity: USB, Ethernet, WiFi, and Bluetooth
• Durability: 2 million cuts autocutter life
• Dust and splash resistance: Ideal for various environments
• QR code printing: Engaging for customer promotions
• Mountable under the counter: Space-saving design

Specifications:

• Print Method: Direct thermal printing
• Print Speed: Max. 300 mm/sec (11.8 inches/sec)
• Interfaces: USB, Serial, Ethernet (optional), WiFi (802.11), Bluetooth, Parallel
• Driver Compatibility: ESC/POS, OPOS, Windows, Linux
• Autocutter: Partial cut
• Paper Width: 80mm (3.14"), 58mm (2.28")
• Paper Roll Diameter: Max. 83mm (3.27")
• Paper Thickness: 55-80 μm
• Print Density: 203x203 dpi
• Operating Temperature: 41 to 113°F (5 to 45°C)
• Storage Temperature: 14 to 122°F (-10 to 50°C)
• Dimensions: 125x192.72x115 mm (4.921×7.588×4.528 inches)
• Weight: 1.8 kg (3.97 lbs)
• Power Supply: 100-240V, 50-60Hz, 1.3A
• Safety Standards: FCC-A, CE, UL, VCCI-A, CCC
