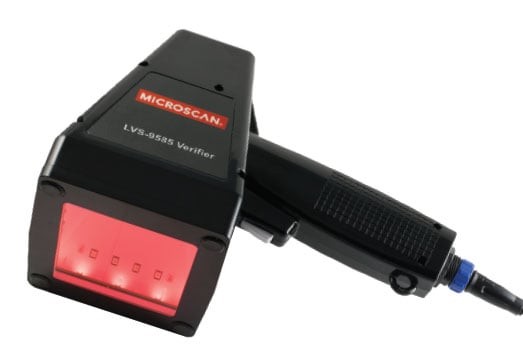

Omron 9585-DPM Barcode Verifiers

The Omron LVS 9585 Barcode Verifier is a cutting-edge, portable solution designed for offline barcode verification to ISO/IEC and GS1 standards. With a high-resolution 5.0 megapixel camera, this device efficiently reads and analyzes linear (1D) and two-dimensional (2D) codes, ensuring accuracy across various surfaces and materials. Ideal for multiple line production and warehouse environments, it features advanced capabilities like the stitching feature for grading large barcodes and a range of software options including Enhanced Application Identifier Verification (EAIV) for comprehensive data analysis.

• **Stitching feature** to grade larger barcodes.
• Validates printed barcodes to **ISO/IEC, GS1, and UDI standards**.
• Verifies direct part marks (DPM) to **ISO, MIL-STD-130, and GS1 standards**.
• High-resolution, verifying **2D symbols as small as 2 mil** (50 μ).
• **21 CFR Part 11 compliant-ready** with multi-language support.
• Offers **quality data reporting** for auditing purposes.
• Includes **NIST-Traceable Calibrated Conformance Test Card** for calibration.
• Optional **adjustable mounting stand adapter** for ease of use.

• **Camera**: 5.0 megapixel
• **Field of View**: 76.19 mm (3.0") horizontal, 57.15 mm (2.25") vertical
• **Operating Temperature**: 4° to 46° C (40° to 115° F)
• **Connectivity**: USB 2.0 A plug to Mini-B plug, 6.5 ft cable
• **Weight**: 0.68 kg (1 lb. 8 oz.) unpackaged
• **Supported Standards**: ISO/IEC, GS1, MIL-STD-130N, various symbologies
• **Compliance**: 21 CFR Part 11 compliant-ready
