Juniper Networks
Juniper Networks JUNIPER-ACX1100 Wireless Routers
SKU:
MOD-JUNIPER-ACX1100

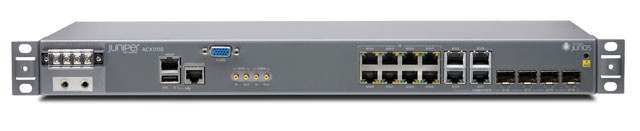

The compact, 1 U, environmentally hardened ACX1100 Universal Access Router is an Ethernet-only access router with a fixed configuration of eight copper GbE 10/100/1000 Mbps interfaces, and four GbE copper/fiber combination ports. ACX1100 provides 60 Gbps performance, programmability, and a fanless passive cooling system that makes it ideal for external cabinet or tower installations. ACX Series Universal Access Routers cost-effectively address current operator challenges to rapidly deploy new, high-bandwidth services.
Select model
Same-day shipping
for orders placed before 2:30 p.m.
Learn more
Secure payment with
Description
The Juniper Networks ACX1100 Wireless Router is a robust solution designed for modern network demands, combining operational intelligence with unparalleled performance. This universal access router simplifies network architecture by enabling seamless Ethernet and IP/MPLS deployments. Suitable for both service providers and enterprises, it delivers high precision synchronization, advanced security features, and zero-touch deployment capabilities, ensuring top-notch quality of experience (QoE) while lowering total cost of ownership (TCO). From mobile backhaul to enterprise networking, the ACX1100 is an ideal choice for diverse applications.
Key Features:
- High Capacity and Scalability: Up to 60 Gbps throughput.
- Zero Touch Deployment: Simplifies installation and provisioning.
- Integrated High-Precision Timing: Meets stringent LTE-A requirements.
- Comprehensive Security Services: Advanced IPsec and NAT capabilities.
- MEF CE 2.0 Compliance: Supports E-LINE, E-LAN, and more.
Specifications:
- Dimensions: 17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
- Weight: 7.8 lbs (3.54 kg)
- Power: 90-240 VAC (AC) / -48 VDC (DC)
- Operating Temperature: -40° to 149° F (-40° to 65° C)
- Humidity: 95% RH noncondensing
- Environmental Approval: IP65 compliant for outdoor installations
Documents
acx-series.pdf MOD-JUNIPER-ACX1100
