Juniper Networks
Juniper Networks JUNIPER-ACX1000 Wireless Routers
SKU:
MOD-JUNIPER-ACX1000

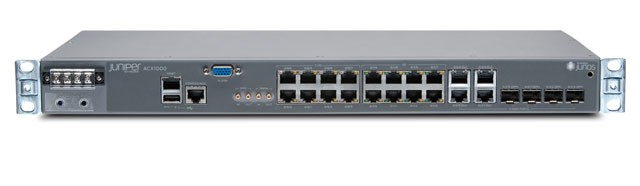

Ideal for enterprise and service provider cabinet and tower deployments, the ACX1000 Universal Access Router is a 1 U fanless router that delivers up to 60 Gbps through a fixed configuration of eight T1/E1 interfaces, eight copper 10/100/1000 GbE ports, and four GbE combination fiber/copper ports. The Junos SDK makes ACX1000 fully customizable, and the scalability and reliability of the platform improves customer satisfaction, while lowering the total cost of operating, maintaining, and updating the network infrastructure.
Select model
Same-day shipping
for orders placed before 2:30 p.m.
Learn more
Secure payment with
Description
Experience unparalleled connectivity with the Juniper Networks ACX1000 Wireless Router, engineered for both service providers and enterprises. This universal access router delivers high-precision synchronization technology while enhancing network security and availability. The ACX1000 simplifies access and aggregation layers, providing a seamless transition to Ethernet or IP/MPLS infrastructure. With zero-touch deployment and advanced SLA management, it minimizes operating costs and boosts operational efficiency, making it perfect for applications in sectors such as utilities, defense, and transportation.
Key Features
- High Capacity and Scalability: Supports up to 60 Gbps throughput.
- Advanced Security: Features like IPsec and NAT to protect subscriber traffic.
- Zero Touch Deployment: Automates installation and provisioning.
- Enhanced Service Assurance: Comprehensive SLA management and Ethernet OAM.
- Environmentally Hardened: IP65 compliant for outdoor installations.
Specifications
- Dimensions (W x H x D): 17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
- Weight: 6.5 lb (2.94 kg) fully configured
- Power: -48 V nominal or -60 V telco nominal
- Maximum Power Draw: 50 W (ACX1000); 35 W (ACX1100-AC)
- Operating Temperature: -40° to 149° F (-40° to 65° C)
- Humidity: 95% RH noncondensing
- NEBS Compliance: Yes
- MEF CE 2.0 Compliant: Yes
Documents
acx-series.pdf MOD-JUNIPER-ACX1000
