ID Tech

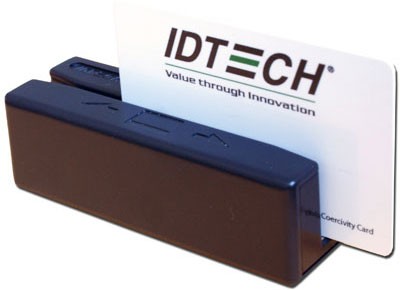

ID Tech ID-SECUREMAG Card Readers
SKU:
MOD-ID-SECUREMAG
The IDTech SecureMag is a 100 mm magnetic stripe card reader that offers retailers a complete and reliable security solution. This intelligent reader delivers superior reading performance while encrypting sensitive data that complies with PCI-DSS requirements. The SecureMag ensures all data transactions are protected from end to end reducing fraud and data compromises. Data encryption prevents card holder information from being accessed when data is stored or in transit. It also allows customers the flexibility to choose a decryption party right for them. The SecureMag supports TDES and AES data encryption using DUKPT key management. Each SecureMag card reader is assigned a unique serial number for tracking purposes. SecureMag has several operational security levels allowing the user to select the security profile needed for the application.
Select model
Same-day shipping
for orders placed before 2:30 p.m.
Learn more
Secure payment with
Description
Experience reliability and security with the ID Tech SecureMag Credit Card Reader. Designed for retailers, this compact 100mm magnetic stripe card reader excels in performance while ensuring compliance with PCI-DSS requirements. The SecureMag™ encrypts sensitive data, protecting transactions from end to end and reducing the risk of fraud. With options for TDES and AES encryption and customizable decryption options, this intelligent reader guarantees safety without sacrificing convenience. Whether mounted in various orientations or used in different settings, the SecureMag™ is easy to install and operate, making it an essential tool for any business.
Key Features
- Dual functionality: Can operate as a standard or encrypted reader.
- Data protection: Unique serial number for each device.
- Clear text confirmation: Includes cardholder's name and masked PAN.
- Power supply: USB powered, no external power needed.
- Seamless operation: Bi-directional card reading.
- Versatile formats: Supports ANSI/ISO/AAMVA standards and custom formats.
- Reliability indicators: Beeper and tri-colored LED indicators.
Specifications
- Electrical:
- Power Requirements: +5 VDC +/-10%, 50mV ripple Max.
- Interfaces: USB Keyboard, USB HID
- Environmental:
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -30°C to 65°C (-22°F to 149°F)
- Humidity: Maximum 95% non-condensing
- Mechanical:
- Dimensions: 3.94 in (L) x 1.38 in (W) x 1.18 in (H)
- Weight: 7 oz.
- Cable Length: 6-foot side exit cable (bottom exit optional)
- Media Thickness: 0.015 in to 0.035 in
- Reliability:
- Operating Life: 1,000,000 cycles minimum
- Warranty: Two years, parts and labor
Documents
securemag.pdf MOD-ID-SECUREMAG
