Honeywell

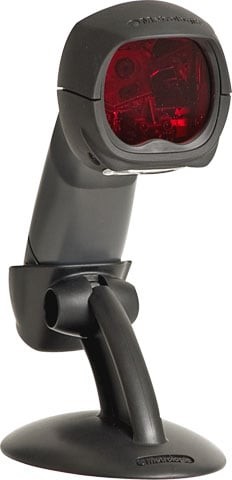

Honeywell 3780, 1D, USB, kit (USB), black

SKU:

MK3780-61A38

handheld scanner, retail, 1D, omnidirectional, CodeGate function, switchable scan pattern, 1333 scans/sec., USB, incl.: cable (USB), stand, colour: black
Description
ico-plus ico-minus

The Honeywell Fusion 3780 Barcode Scanner is an affordable, omnidirectional laser scanner designed for efficiency in retail environments. Combining both omnidirectional and single-line scanning capabilities, this lightweight and ergonomic device enhances checkout processes across various venues, including pharmacies, specialty stores, and convenience shops. Its automatic in-stand operation, adjustable stand for comfort, and patented CodeGate® feature ensure superior performance, while the integrated infra-red sensor optimizes scanning efficiency. Built for durability and equipped with user-centric features, the Fusion 3780 is an excellent investment for medium-volume retailers.


Key Features
  • Omnidirectional Scan Pattern: Aggressive scanning in any orientation to boost throughput.
  • Single-Line Scan Pattern: Switch to targeted single-line scanning with a simple button press.
  • Automatic In-Stand Detection: Hands-free operation for reduced operator fatigue.
  • Sleep Mode With IR Wake Up: Extends operational life by reducing power consumption.
  • Optional Integration of RF EAS Antenna: Deactivates RF EAS tags while decoding bar codes simultaneously.

Specifications
  • Dimensions: 189 mm x 65 mm x 73 mm (7.4" x 2.6" x 2.9")
  • Weight: 195 g (6.9 oz)
  • Input Voltage: 5 VDC ± 0.25 V
  • Operating Power: 1.4 W (275 mA @ 5 V)
  • Standby Power: 1.0 W (200 mA @ 5 V)
  • Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA
  • Operating Temperature: -20°C to 40°C (-4°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Humidity: 5% to 95% relative humidity, non-condensing
  • Drop: Designed to withstand multiple 1.5 m (5') drop
  • Environmental Sealing: Sealed to resist airborne particulate contaminants
  • Light Levels: 4842 Lux
  • Scan Pattern: Omnidirectional and single line
  • Scan Speed: Omnidirectional: 1,333 scan lines/second; Single line: 67 scan lines/second
  • Decode Capability: Reads standard 1D and GS1 DataBar symbologies
  • Warranty: 3 year factory warranty

Main Features

  • Connectivity: Corded

  • Scanner Capability: 1D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Barcode Symbology Supported
  • All Standard 1D Symbologies
  • RSS-Expanded
  • RSS-14
  • RSS-Limited
Light Source Laser
Maximum Scan Resolution 5 mil
Depth of Field
  • 1.7" - 4.5"@5.2mil
  • 1" - 7.5"@7.5mil
  • 1" - 9.5"@10.4mil
  • 1" - 11"@13mil
  • 1" - 12"@19.5mil
Scan Pattern
  • Single Line
  • Omni-directional
Interfaces/Ports
Host Interface Multi-interface
Power Description
Input Voltage 5 V DC
Physical Characteristics
Form Factor Handheld
Product Color Gray
Height 2.9"
Width 2.6"
Depth 7.4"
Weight (Approximate) 6.90 oz
Miscellaneous
Package Contents
  • Fusion MS3780 Barcode Scanner
  • MS3780 User's Guide
  • MetroSelect Configuration Guide
Additional Information

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • IBM 468X/469X
  • USB
  • OCIA

    		•
    Warranty
    Limited Warranty 1 Year
    Documents
    ico-plus ico-minus
    Product document ms3780.pdf MK3780-61A38 Product document ms3780.pdf MOD-MS3780FUSION
