Honeywell

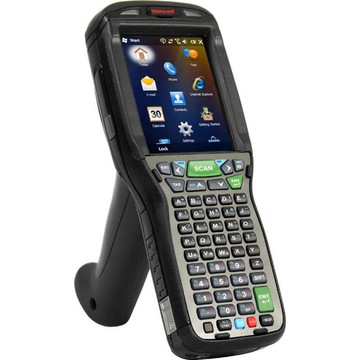

Honeywell Dolphin 99GX, 2D, ER, USB, RS232, BLUETOOTH, Wi-Fi, Gun (EN)

SKU:

99GXL03-00112SE

Fitted with an extended-range 2D imager and a 55-key alphanumeric keypad, the Honeywell 99GXL03-00112SE runs on a 1 GHz OMAP3715 processor with 256 MB RAM and 1 GB of flash memory, expandable via microSDHC. Its 3.7-inch color VGA touchscreen delivers 480 x 640 resolution, while IEEE 802.11a/b/g/n and Bluetooth provide wireless connectivity secured by WPA2, 802.1x, EAP-TLS and multiple PEAP profiles. The 3060 mAh Li-Ion battery ships included. At 1.37 lb and measuring 8.5 in long by 2.7 in wide by 1.5 in deep, the gun-grip terminal is rated IP64 and survives drops to concrete from 72 in, with ESD tolerance of 15kV DC (air) and 8kV DC (contact). Microsoft Windows Embedded Handheld 6.5 is the operating system. Certifications include CCX v.4, FCC, CE, cULus, CCC and IEC 60068-2-32, with RoHS and WEEE compliance, backed by a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Honeywell Dolphin 99EX Mobile Computer is expertly engineered for transportation and logistics applications. This device offers user-friendly ergonomics, multi-functional data capture, and cutting-edge wireless technology, all housed within a robust casing. With an IP67 rating for durability, the Dolphin 99EX can withstand multiple drops from 6 feet high and provides all-day battery life thanks to innovative Shift-PLUS™ technology, ensuring enhanced productivity. It's designed to operate seamlessly in diverse environments—from loading docks to residential areas—guaranteeing reliable performance wherever you go.


Key Features:

  • Superior Durability: IP67 rated for moisture and particle resistance, withstanding 6-foot drops.
  • Shift-PLUS Power Management: All-day battery life eliminates spare batteries.
  • Adaptus Imaging Technology 6.0: Fast scanning and seamless image capture.
  • Fast and Reliable Wireless Connectivity: Full coverage for real-time data access.
  • Optional Remote MasterMind Software: Reduces total cost of ownership.

Specifications:

  • Dimensions: 8.5" L x 2.7" W x 1.5" - 1.8" H
  • Weight: 520g (Standard), 570g (Extended)
  • Operating Temperature: -4° to 122°F
  • Storage Temperature: -13° to 158°F
  • Battery Life: 9 hours (standard) / 15.5 hours (extended)
  • Display: 3.7" transflective, 480x640 resolution
  • Camera: 3.1 megapixel with automated features
  • Wireless Connectivity: Software definable Gobi 3000, Bluetooth V2.1
  • Warranty: 1-year factory warranty

Main Features

  • Operation System: Windows

  • Connection: Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Image Sensor Type Imager
Scanner Range Extended Range
Drop Specification (To Concrete) 72"
Air Electrostatic Discharge (+/-) 15kV DC
Contact Electrostatic Discharge (+/-) 8kV DC
Processor & Chipset
Processor Manufacturer Texas Instruments
Processor Type OMAP3715
Processor Speed 1 GHz
Memory
Standard Memory 256 MB
Flash Memory 1 GB
Memory Card Slot Yes
Memory Card Supported microSDHC
Display & Graphics
Screen Size 3.7"
Screen Mode VGA
Screen Resolution 480 x 640
Display Color Color
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 55
Keyboard Type Alphanumeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n
Bluetooth Yes
Wireless Security
  • WPA
  • WPA2
  • 802.1x
  • EAP-TLS
  • EAP-TTLS/MSCHAPv2
  • PEAPv0/EAP-MSCHAPv2
  • PEAPv1/EAP-GTC
  • WMM
  • CWG-RF Profile
  • WAPI
Software
Operating System Microsoft Windows Embedded Handheld 6.5
Battery Information
Battery Capacity 3060 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Physical Characteristics
Width 2.7"
Depth 1.5"
Length 8.5"
Weight (Approximate) 1.37 lb
Miscellaneous
Package Contents
  • Dolphin 99GX Handheld Terminal
  • Quick Start Guide
  • Li-Ion Battery
  • Stylus
Certifications & Standards
  • CCX v.4
  • CE
  • FCC
  • cULus
  • CCC
  • IEC 60068-2-32
  • IP64
Environmentally Friendly Yes
Environmental Certification
  • RoHS
  • WEEE
Warranty
Limited Warranty 1 Year
