Honeywell

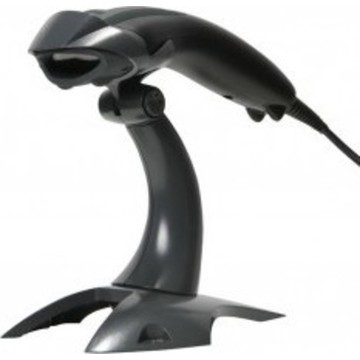

Honeywell Voyager XP Curve 1400G Barcode Scanner 1D, 2D, tethered, standard range, IP42

SKU:

1400GSR-1

Honeywell 1400G Voyager Barcode Scanner — Honeywell CurveScan Pro 1400G, a CurveScan variant optimized for challenging or curved barcodes, combining 2D imaging with improved read performance on curved surfaces. Key attributes: Supported Symbologies Decoding Capability Interfaces Form Factor Scan Range Ingress Protection Rating
Description
ico-plus ico-minus
Honeywell's Voyager 1400g Barcode Scanner is a versatile area-imaging solution, ideal for businesses aiming to enhance their data capture capabilities. With the ability to read both standard linear barcodes and emerging 2D barcodes, this scanner enables enterprises to future-proof their operations. Built on Honeywell's trusted Voyager platform, the 1400g ensures reliable performance without the premium cost of advanced imaging features, making it an economically sound investment for companies transitioning to sophisticated scanning needs.
Key Features
  • Reliable Data Collection: Omnidirectional reading of virtually all linear and popular 2D barcodes, including those displayed on mobile devices.
  • Future Proof: Affordable 2D barcode scanning capability, accommodating evolving business needs with a single device.
  • Remote MasterMind™ Ready: Streamlined management of devices reduces total ownership cost.
  • Flexible Licensing Solution: Models available with basic functionality, with options to enable additional features as required.

Specifications
  • Mechanical:
    • Dimensions: 43 mm x 180 mm x 66 mm (1.7" x 7.1" x 2.6")
    • Weight: 119 g (4.2 oz)
  • Electrical:
    • Input Voltage: 4.0 to 5.5 VDC
    • Operating Power: 2 W (400mA @ 5 VDC)
    • Standby Power: 0.45 W (90mA @ 5 VDC)
    • Host System Interfaces: USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
  • Environmental:
    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
    • Humidity: 0% to 95% relative humidity, non-condensing
    • Drop: Designed to withstand 30 1.5 m (5') drops to concrete
    • Environmental Sealing: IP42
    • Light Levels: 0 to 100,000 lux (9,290 foot-candles)
  • Scan Performance:
    • Scan Pattern: Area Image (640 x 480 pixel array)
    • Motion Tolerance: Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
    • Scan Angle: Horizontal 42.4°, Vertical 30.8°
    • Symbol Contrast: 35% minimum reflectance difference
    • Pitch, Skew: 60°, 70°
  • Decode Capability:
    • 1400g1D: All standard 1D symbologies
    • 1400gPDF: All standard 1D and PDF417 symbologies
    • 1400g2D: All standard 1D, PDF417 and 2D symbologies
  • Warranty: 5 year factory warranty

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Case color: White

  • IP Rating: IP42

  • Range: Standard Range

  • Connectivity: Corded

  • Connection: USB

  • Scanner Capability: 1D, 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • Code 39, code 128, code 93, EAN, UPC, code 11, code 32 Pharmaceutical, codabar, China Post, GS1 databar

2D:

  • Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCode

Digital Watermarking:

  • Digimarc

OCR:

  • OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 points OCR typeface
Light Source LED
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern Area
Scanning Distance 16.10"
Features
  • Notification LED
  • Beep
  • Vibration
Field of View (Horizontal) 39°
Field of View (Vertical) 27°
Reading Angle (Skew) 70°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 180°
Motion Tolerance 27.60 in/s
Maximum Ambient Light 100000 lux
Drop Specification
  • Engineered to withstand 30 drops to concrete from 1.8 m (5.9 ft)
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 5 mil
Minimum Element Resolution (DataMatrix) 5 mil
Maximum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 4 mil
Maximum Element Resolution (PDF417) 6.7 mil
Image Sensor Resolution 1040 x 720
Illumination Type LED
Illumination Color White
Air Electrostatic Discharge (+/-) 15kV
Interfaces/Ports
Host Interface
  • USB
  • Multi-interface
  • Serial
  • Keyboard Wedge
Power Description
Maximum Operating Power Consumption 2 W
Standby Current 90 mA
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Color Family White
Product Color White
Durability Drop Resistant
Height 1.7"
Width 2.6"
Length 7.1"
Weight (Approximate) 4.20 oz
Miscellaneous
Ingress Protection (IP) Rating IP42
Application/Usage
  • Retail
  • Healthcare
  • Industrial
  • Pharmacy
Warranty
Limited Warranty 5 Year
Documents
ico-plus ico-minus
Product document voyager-xp-1400g.pdf 1400GSR-1 Product document voyager-1400g.pdf MOD-1400G-VOYAGER Product document voyager-xp-1400g.pdf MOD-1400G-VOYAGER
