GoDEX

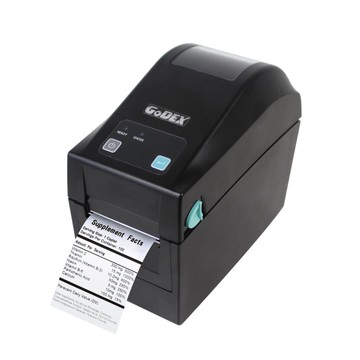

GoDEX DT230i Label Printer Direct Thermal, 300dpi, 57mm, 127mm/s, USB, Ethernet

SKU:

DT230I

Most desktop label printers take up valuable space, but the GoDEX 300dpi is built for tight work areas. This direct thermal printer delivers 300 dpi printing at up to 127 mm/s with a 57 mm maximum print width, making it a compact choice for clear labels, barcodes, and everyday desktop labeling where space and speed both matter.
Description
ico-plus ico-minus

The GoDEX DT230 is a compact direct thermal label printer engineered for reliable desktop and point-of-sale labeling in retail, logistics, warehousing, healthcare and office environments. Offering high-resolution output options and flexible connectivity, it is designed to integrate into existing B2B workflows where space is at a premium but consistent, sharp barcode and text printing is required. The DT230 family balances a small footprint and wall-mountable flexibility with practical operator controls and onboard processing power to ensure steady throughput, straightforward media handling and dependable day-to-day operation for businesses that need efficient, low-maintenance label production.

Key Features

  • High-resolution printing: Available 300 dpi output delivers crisp text, barcodes and fine graphics for demanding identification and tracking applications.
  • Flexible connectivity: Built-in USB 2.0, RS-232 (DB-9) and Ethernet 10/100 Mbps (plus USB Host on some variants) enable easy integration into POS and networked environments.
  • Compact, adaptable form factor: Small desktop footprint with wall-mountable options preserves valuable counter or workstation space.
  • Efficient direct thermal engine: Supports fast, reliable label production with available print speeds up to 127 mm/s (5 ips) and multiple print widths suited to common label formats.
  • Practical operator controls: Onboard LEDs, feed/calibration keys and a color TFT display on select models simplify setup, media calibration and daily operation.
  • Robust media support: Handles a broad range of media widths, thicknesses and core options to accommodate retail, shipping and inventory labeling needs.

Specifications

  • Brand: GoDEX
  • Product Name: GoDEX / DT230
  • Model(s): DT230, DT230I
  • Print Method: Direct Thermal
  • Available Resolutions: 203 dpi, 300 dpi
  • Print Speed: 5 IPS (127 mm/s)
  • Print Width: 2.12 in / 2.24 in (54 mm / 57 mm); Maximum Print Width 57 mm
  • Minimum Print Length: 0.16 in (4 mm)
  • Maximum Print Length: 68 in / 30 in (per variant) / Printable length up to 762 mm
  • Processor: 32-bit RISC CPU
  • Flash Memory: 128 MB
  • SDRAM: 32 MB
  • Interfaces: USB 2.0, USB Host (A-Type) on some models, RS-232 (DB-9), Ethernet 10/100 Mbps
  • Display: 2.4 in color TFT (DT230I)
  • Dimensions (L x H x W): 207 x 171 x 112 mm (selected variant)
  • Product Weight: 1.05 kg (selected variant)
  • Power Input: 100-240 VAC, 50-60 Hz
  • Media Width Range: 15 - 60 mm
  • Media Thickness Range: 0.08 - 0.20 mm
  • Core Diameter Options: 25.4 mm, 38.1 mm
  • Maximum Label Roll Diameter: 127 mm
  • Sensor Type: Adjustable reflective sensor; Fixed transmissive sensor (center aligned)
  • Supported Printer Languages: EZPL, GEPL, GZPL, GDPL (auto switch)
  • Resident Graphic File Types: BMP, PCX
  • Ribbon Required: No
  • Optional Upgrades: Rewinder, Cutter, Peeler, Liner take-up (model dependent)
  • Target Industry: POS / Retail, Healthcare, Warehouse & Logistics
  • RFID: False
  • Cutter: False

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Print Speed: 5 in/s

  • DPI: 300 dpi

  • Optional Upgrades: Rewinder, Cutter, Peeler

  • Max Width: 2 mm

  • Max Label Length: 30 in

Documents
ico-plus ico-minus
Product document mod-dt230-godex-label-printer-datasheet.pdf DT230I Product document mod-dt230-godex-label-printer-user-manual.pdf DT230I Product document dt230-godex.pdf DT230I Product document mod-dt230-godex-label-printer-datasheet.pdf MOD-DT230 Product document mod-dt230-godex-label-printer-user-manual.pdf MOD-DT230
FAQs
ico-plus ico-minus
What print resolution does the GoDEX DT230 deliver, and is it suitable for printing fine barcodes and detailed graphics?
The GoDEX DT230 prints at 300 dpi, which produces crisp barcodes, sharp text, and fine graphics suitable for demanding identification and tracking applications.
How fast can the GoDEX DT230 print, and what label widths does it support?
The DT230 prints at up to 5 IPS (127 mm/s) and handles media widths from 15 mm to 60 mm, with a maximum print width of 57 mm.
What connectivity interfaces are built into the GoDEX DT230?
The DT230 includes USB 2.0, RS-232 (DB-9), and Ethernet 10/100 Mbps as standard interfaces, making it straightforward to integrate into networked POS and desktop environments.
Does the GoDEX DT230 require a ribbon to operate?
No, the DT230 uses direct thermal printing and does not require a ribbon, which reduces consumable costs and simplifies media handling.
What optional hardware upgrades are available for the GoDEX DT230?
Optional upgrades for the DT230 include a rewinder, cutter, peeler, and liner take-up unit, allowing the printer to be configured for different label dispensing workflows.
Which industries and environments is the GoDEX DT230 designed for?
The DT230 is engineered for POS and retail, healthcare, and warehouse and logistics environments, and its compact, wall-mountable form factor makes it well suited to installations where counter or workstation space is limited.
