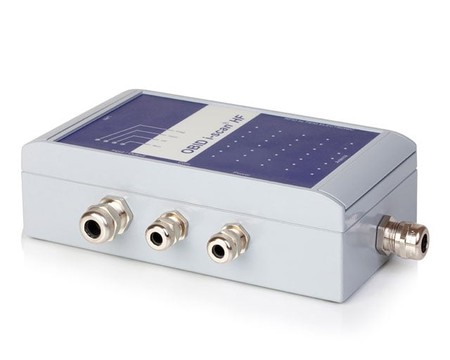

FEIG FEIG-LR1002 Readers

The FEIG LR1002 RFID Reader is a high-performance long-range device designed for diverse applications in retail, industry, and logistics. With a powerful reading capacity at a frequency of 13.56 MHz, this reader identifies transponders according to ISO 15693 and HF Gen 2 standards. Boasting an optimal cost-performance ratio, it is perfect for scenarios where mid-range readers fall short, such as conveyor belts and sorting systems. Flexible and robust, the LR1002 offers various configurations and diagnostics, making it an excellent choice for businesses looking to streamline operations and improve tracking efficiency.

Key Features:

• Powerful reader for diverse applications in retail, industry, and logistics
• Adjustable output power for tailored performance
• Multiple interfaces: Ethernet, USB, RS232
• 4 reader modes for various operational needs
• International certifications ensure compliance with industry standards

Specifications:

• Dimensions (wxhxd): 160 mm x 120 mm x 35 mm (ID ISC.LRM1002-E), 255 mm x 135 mm x 65 mm (ID ISC.LR1002-E)
• Weight: Approx. 350 g (ID ISC.LRM1002-E), Approx. 1,100 g (ID ISC.LR1002-E)
• Housing: Aluminium, grey
• Protection class: IP54
• Power supply: 24 V DC +15%, max. 16 VA
• Operating frequency: 13.56 MHz
• Transmitting power: 1 W or 5 W (adjustable)
• Antenna connector: 1x SMA connector (50 Ohm)
• Output: 1 Relay (24 V, 1 A), 1 Optocoupler (24 V DC)
• Reader modes: ISO Host Mode, Scan Mode, Buffered Read Mode, Notification Mode
• Supported transponders: ISO 18000-3 MODE 1 & 3 (ISO 15693 & HF Gen2)
• Temperature range: Operation – -25°C to +55°C; Storage – -25°C to +85°C
• Relative humidity: 5% to 80% (non-condensing)
