Elo

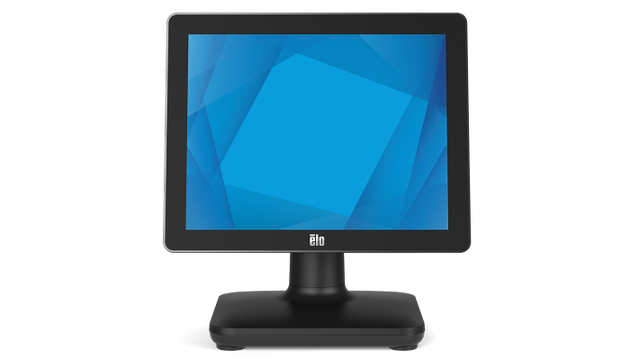

Elo E-Series 3, 8GB RAM, 128GB SSD, 39.6 cm (15,6''), Full HD, USB, USB-C, RS232, BT, Ethernet, Intel Celeron, SSD, 11 IoT Enterprise, kit (RS232), black

SKU:

E849711

Fitted with 8 GB DDR5 SDRAM and a 128 GB M.2/PCI Express SSD, the Elo E849711 is an all-in-one POS terminal running Windows 11 IoT Enterprise LTSC (64-bit) on an Intel Celeron N97 processor that reaches 3.60 GHz turbo speed with 6 MB of cache and supports up to 16 GB of memory. Its 15.6-inch Full HD LED touchscreen delivers projected capacitive multi-touch input at up to 10 simultaneous touch points, with a 500:1 contrast ratio, 25 ms response time, and 178-degree horizontal and vertical viewing angles across a 16:9 active area measuring 13.55 in wide by 7.62 in tall. Connectivity spans two USB 2.0 ports, two USB 3.0 ports, one USB-C port, Gigabit Ethernet, a serial port, a cash drawer port, and Bluetooth 5.3, with Intel UHD Graphics handling output. The unit weighs 7 lb and ships in black.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo E-Series 2 POS System is a purpose-built all-in-one point-of-sale terminal designed for retail, hospitality, and self-service environments where reliability and flexibility are essential. Centered on a 15.6" TFT touchscreen display and driven by an Intel Celeron processor running at 2.70 GHz, it pairs 4 GB DDR4 SDRAM with a 128 GB M.2/SATA SSD to deliver responsive performance for POS applications. An integrated expansion hub in the stand base supports connectivity for cash drawers, printers, barcode scanners, and payment devices, while USB-C output allows a customer-facing display to receive touch, data, and power through a single cable. Gigabit Ethernet keeps the terminal reliably networked, and a retail-hardened, splash-proof enclosure supports demanding commercial use. The system is backed by a standard 3-year warranty.

Main Features

  • Connection: Serial, USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3
Form Factor All-in-One
Features Edge-to-Edge Glass Design
Processor & Chipset
Processor Manufacturer Intel
Processor Type Celeron
Maximum Turbo Speed 3.60 GHz
Processor Model N97
Processor Cache 6 MB
Memory
Standard Memory 8 GB
Memory Technology DDR5 SDRAM
Maximum Memory Supported 16 GB
Storage
Solid State Drive Capacity 128 GB
Solid State Drive Interface M.2/PCI Express
Display & Graphics
Screen Size 15.6"
Active Display Size (Horizontal) 13.55"
Active Display Size (Vertical) 7.62"
Display Screen Type LED
Screen Mode Full HD
Touchscreen Yes
Touchscreen Technology Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touch Points 10
Aspect Ratio 16:9
Contrast Ratio 500:1
Response Time 25 ms
Color Supported 262,000 Colors
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Graphics Controller Manufacturer Intel
Graphics Controller Model UHD Graphics
Network & Communication
Wireless LAN No
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
USB Yes
USB Type-C Yes
Network (RJ-45) Yes
Cash Drawer Port Yes
Serial Port Yes
Number of Micro USB 2.0 Ports 2
Number of USB 3.0 Ports 2
Number of USB Type C Ports 1
Built-in Devices
Number of Speakers 2
Speaker Power 2 W
Software
Operating System Windows 11 IoT Enterprise LTSC (64-bit)
Power Description
Power Source
  • DC Power
  • AC Power
Physical Characteristics
Color Family Black
Product Color Black
Weight (Approximate) 7 lb
Documents
ico-plus ico-minus
Product document e-series-3.pdf E849711 Product document elopos-17.pdf ELOPOS-SYSTEM
FAQs
ico-plus ico-minus
What environments is the Elo EloPOS System Touch Screen designed for?
The EloPOS System is purpose-built for point of sale use in traditional retail and self-service applications, and is retail-hardened to withstand continuous public use.
What peripheral connectivity does the Elo EloPOS System Touch Screen offer?
The system includes 3 x USB 3.0, 2 x USB 2.0, 4 x Micro USB 2.0, powered USB ports at 24V and 12V, 2 x RJ45 serial ports, a 12V/24V cash drawer port, 1 x Gigabit LAN, and a full-function USB-C port that carries power up to 27W, USB 3.0, and DisplayPort for connecting a customer-facing display.
Which operating systems are supported on the Elo EloPOS System Touch Screen?
It is available with No OS, which has been pretested with Linux SuSE, Ubuntu, and Red Hat, or with Microsoft Windows 10 IoT Enterprise LTSC 64-bit.
What optional accessories can be added to the Elo EloPOS System Touch Screen?
Elo offers field-installable peripherals including a biometric fingerprint reader, magnetic stripe reader, rear-facing VFD customer display, 2D barcode scanner, 10-inch and 13-inch LCD customer displays, a Dallas Key, and EMV cradles for compatible payment devices.
What is included in the box with the Elo EloPOS System Touch Screen?
Each unit ships with the EloPOS touchcomputer, a NA power cord, an EU power cord, a 180W power adapter, an RJ-45 to DB-9 cable, a cable cover locking screw, a security cover and screws, a cable management kit, and a Quick Installation Guide.
What warranty and operating temperature does the Elo EloPOS System Touch Screen carry?
The system comes with a standard 3-year warranty, extendable up to 5 years, and is rated for operation between 0°C and 35°C (32°F to 95°F).
