Elo

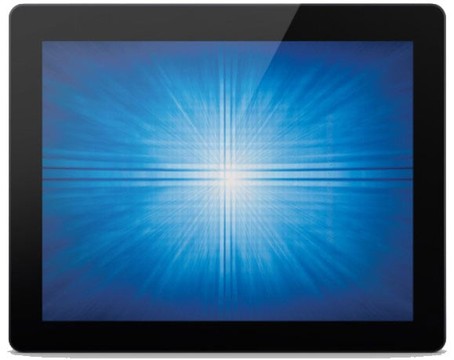

Elo 1590L Open Frame Touch Screen,15'', AccuTouch

SKU:

E326154

15" Touchscreen Monitor - Elo 1590L - Open-Frame LCD - 4:3 Aspect Ratio - AccuTouch Single-Touch - 1024 x 768 - 16.2 million Colors - 240 nits Brightness (typical) - LED Backlight - 700:1 Contrast Ratio (typical) - HDMI - VGA & Display Port Video Interface - USB Touch Controller Interface - Anti-Glare - Bezel - ?L? (Side Mount) Brackets - Black - 3-Year Warranty - No Power Brick - Worldwide. Box Includes HDMI Cable (Part# E538507) - VGA Cable - RJ45 OSD Remote (Part# E483757) - Touch USB Cable - Quick Install Guide - EEI Label - Japan Class-B TM Info Sheet - ?L? (Side Mount) Brackets and w/Screws (Part# E203787).
Description
ico-plus ico-minus

The Elo 1590L 15-inch open-frame LCD touch display offers an exceptional touchscreen experience, tailored for kiosks, retail, industrial automation, and gaming applications. Designed with Elo's renowned reliability, this display features an energy-efficient LED backlight for lower heat output and power consumption. The Elo 1590L combines advanced multi-touch technology with various touch options, ensuring accuracy and durability. With easy integration and a sealed touchscreen against dirt and moisture, this display is a versatile choice for businesses seeking quality and performance at an economical price point.


Key Features
  • Choice of Touch Technologies: Projected Capacitive, IntelliTouch SAW, SecureTouch, and AccuTouch.
  • Sealed Touchscreen: Protection against dirt, dust, and liquids for easier integration.
  • Vivid Image Clarity: Outstanding clarity and light transmission for precise touch responses.
  • Energy-efficient: State-of-the-art LED backlight reduces electricity use and heat generation.
  • Durable Build: Designed for long-lasting performance with stringent testing and support.

Specifications
  • Model: 1590L
  • Color: Black
  • Active Display Area: 304 x 228 mm (12 x 9 inches)
  • Diagonal: 15"
  • Aspect Ratio: 4:3
  • Native Resolution: 1024 x 768 at 60, 75 Hz
  • Brightness: 250 nits (LCD Panel)
  • Viewing Angle: Horizontal: 80°/160°; Vertical: 70°/140°
  • Weight: Unpackaged: 6.4 lbs (2.9 kg); Packaged: 7.7 lbs (3.4 kg)
  • Warranty: 3 years
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Humidity: Operating: 20% to 80%; Storage: 10% to 95%

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 15"
Viewable Screen Size 15"
Screen Mode XGA
Response Time 16 ms
Aspect Ratio 4:3
Mount Type
  • Rack-mountable
  • Front Mount
Backlight Technology LED
Video
Maximum Resolution 1024 x 768
Color Supported 16.2 Million Colors
Contrast Ratio 700:1
Brightness 250 Nit
Touchscreen Information
Touchscreen Type 5-wire Resistive
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
DisplayPort Yes
Power Description
Operating Power Consumption 12.50 W
Physical Characteristics
VESA Mount Compatible Yes
Product Color Black
Height 10.4"
Width 13.2"
Depth 1.7"
Weight (Approximate) 6.40 lb
Miscellaneous
Package Contents
  • 1590L 15" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Certifications & Standards
  • TÜV
    		•
    Environmentally Friendly Yes
    Environmental Certification
    • RoHS
    • China RoHS
    • WEEE
    Warranty
    Limited Warranty 3 Year
    Documents
    ico-plus ico-minus
    Product document 1590l-2021.pdf E326154 Product document mod-elo-90-series-elo-digital-signane-datasheet.pdf MOD-ELO-90-SERIES Product document mod-elo-90-series-elo-digital-signane-user-manual.pdf MOD-ELO-90-SERIES
