Elo

Elo E271156 Point of Sale Systems

SKU:

E271156

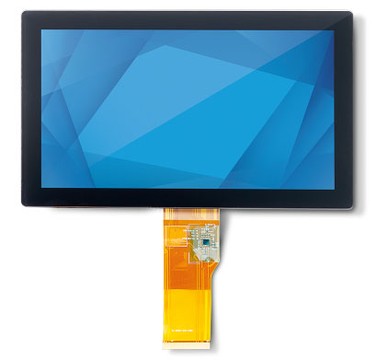

Rated for an operating temperature range of -22 degrees F (-30 degrees C) to 185 degrees F (85 degrees C), the Elo E271156 is a 7-inch projected capacitive LCD touchscreen display module built for commercial and industrial integration. It delivers an 800 x 480 WVGA resolution at 400 Nit brightness across an active display area of 6.04 in x 3.64 in, with horizontal and vertical viewing angles of 160 degrees each. The multi-touch projected capacitive panel is treated with chemically strengthened, anti-glare cover glass suited to demanding environments including factory automation, medical displays and commercial kitchen equipment. A chip-on-flex touch controller bonds to the commercial-grade LCD for embedded integration, with USB connectivity for host systems. The TouchPro product line spans 7 to 15.6-inch standard sizes, and this unit carries a 2-year warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo 2794L is a 27-inch open-frame LCD touchscreen display designed for system integrators, value-added resellers, and OEM deployments in high-traffic commercial and industrial environments. Built around a 1920x1080 native resolution panel with a 3000:1 contrast ratio and up to 300 nits brightness, it delivers vivid, sharp imagery suited to retail self-service kiosks, casino and amusement installations, industrial automation, and point-of-sale applications. The slim LED-backlit chassis operates on just 30W and produces less heat than conventional backlit displays, easing integration into custom enclosures. A sealed touchscreen resists dirt, dust, and liquids, while a 178° horizontal and vertical viewing angle ensures consistent image quality from virtually any position. Multiple touch technology options — including projected capacitive (PCAP) with up to 10-touch support — combined with USB connectivity and flexible VESA and four-sided mounting interfaces, make the 2794L straightforward to integrate. A 3-year standard warranty and 50,000-hour demonstrated MTBF underscore its long-term reliability.

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 7"
Viewable Screen Size 7"
Screen Mode WVGA
Horizontal Viewing Angle 160°
Vertical Viewing Angle 160°
Features Anti-glare
Active Display Area (H x V) 6.04" x 3.64"
Surface Treatment Anti-glare
Video
Maximum Resolution 800 x 480
Brightness 400 Nit
Touchscreen Information
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Interfaces/Ports
USB Yes
Environmental Conditions
Operating Temperature Range -22°F (-30°C) to 185°F (85°C)
Miscellaneous
Application/Usage
  • Commercial
  • Industrial
Documents
ico-plus ico-minus
Product document touchpro-display.pdf E271156 Product document 2794l.pdf 2794L Product document touchpro-display.pdf 2794L
FAQs
ico-plus ico-minus
What touch technologies are available on the Elo 2794L 27-inch open-frame touchscreen monitor?
The 2794L is offered with IntelliTouch SAW or IntelliTouch Plus SAW on standard-bezel configurations, and Projected Capacitive (PCAP) or iTouch on zero-bezel configurations, supporting single-touch, dual-touch, or 10-touch operation depending on which technology is selected.
What video inputs does the Elo 2794L support?
The 2794L provides HDMI, analog VGA, and DisplayPort video inputs, giving integrators flexibility when connecting to a host system.
What is the native display resolution and brightness of the Elo 2794L?
The native resolution is 1920x1080, and typical brightness is 300 nits for the bare LCD panel; models with IntelliTouch, IntelliTouch Plus, iTouch, or PCAP touch overlays measure 270 nits typical.
What mounting options does the Elo 2794L open-frame display support?
The 2794L supports a 200x100 mm VESA mount on the rear, a four-hole mounting interface on all four sides, front mounting with an optional bezel kit for IntelliTouch and IntelliTouch Plus models, and flush mounting with included brackets for PCAP and iTouch models.
What is included in the box with the Elo 2794L, and what warranty does it carry?
All 2794L displays ship with a VGA cable, OSD remote, USB touch cable, user manual CD, and quick install guide; zero-bezel models also include flush mount brackets with screws, while bezeled models include L-shaped side mount brackets with screws. The display carries a 3-year standard warranty.
What are the operating temperature and humidity limits for the Elo 2794L?
The 2794L operates between 0 °C and 40 °C at 20% to 80% relative humidity, making it suitable for controlled indoor environments such as retail, kiosks, and industrial automation floors.
