Elo

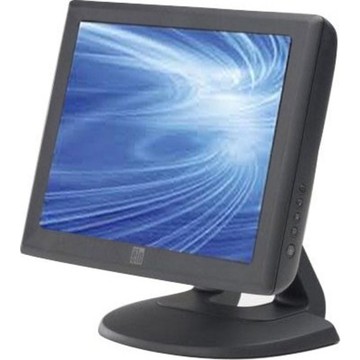

Elo 1215L, 30,5cm (12 ''), AT, gris oscuro

SKU:

E432532

monitor táctil (4: 3), 30,5cm (12 ''), AccuTouch, 800x600 píxeles, montaje VESA, 35ms, Luminosidad: 164cd, Ángulo visual 140/100 ° (H / V), Contraste: 500: 1, VGA, Interfaz táctil: USB, RS232, cable (USB, RS232, VGA), cable de Alimentación (UE), color: gris oscuro
Description
ico-plus ico-minus

The Elo 1215L 12" LCD Desktop Touchmonitor is designed to provide cost-effective touch solutions for systems integrators, resellers, and OEMs. Its sleek and compact design makes it ideal for retail and hospitality applications, offering features like durable construction, multiple touch technology options, and a factory-sealed design that protects against dust and liquid. With a dedicated focus on usability and performance, this touch monitor delivers reliable functionality for point-of-sale systems and various customer interaction points.


Key Features
  • Designed for touch: Stable tilt base and side controls for accessibility.
  • Versatile touch technologies: Choose from AccuTouch, IntelliTouch, or surface capacitive options.
  • Compact and space-saving: Can be used as a desktop or wall-mounted monitor.
  • Sealed against dust and spills: Perfect for high-traffic environments.
  • Dual connectivity: Supports both serial and USB interfaces.
  • Three-year warranty: Confidence in quality and reliability.

Specifications
  • Model: 1215L
  • Display: 12.1" diagonal active matrix TFT LCD
  • Optimal resolution: 800 x 600
  • Brightness: 200 cd/m² (typical)
  • Response time: 35 msec (typical)
  • Viewing angle: Horizontal ±70°; Vertical 60°/50°
  • Power supply: AC/DC input, 85-265 VAC
  • Operating temperature: 0°C to 40°C
  • Weight: 7.92 lb (3.59 kg)
  • Agency approvals: UL/cUL, FCC, CE, and more
  • Mounting options: VESA 75 mm or removable base
  • Warranty: Three years in the U.S.

Main Features

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 12"
Viewable Screen Size 12"
Screen Mode SVGA
Screen Surface Anti-glare
Response Time 35 ms
Mount Type Desk Mountable
Video
Maximum Resolution 800 x 600
Standard Refresh Rate 75 Hz
Color Supported 16.7 Million Colors
Color Depth 24-bit
Contrast Ratio 500:1
Brightness 164 Nit
Touchscreen Information
Touchscreen Yes
Touchscreen Type 5-wire Resistive
Interfaces/Ports
USB Yes
Power Description
Input Voltage 265 V AC
Physical Characteristics
Product Color Dark Gray
Height 11.3"
Width 11.9"
Depth 6.6"
Weight (Approximate) 7.92 lb
Miscellaneous
Package Contents
  • 1000 Series 1215L Touchscreen LCD Monitor
  • North American power cable
  • European power cable
  • Detachable touch cable
  • Detachable video cable
Additional Information
  • Removable base
  • Controls on the side rather than the front
Platform Supported PC
Warranty
Limited Warranty 3 Year
