Elo

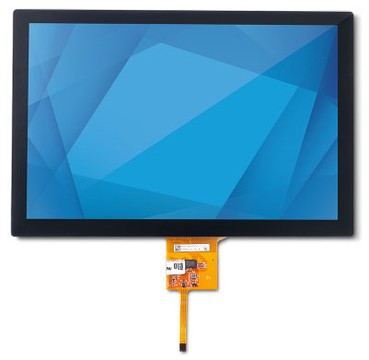

Elo E270763 All-in-One

SKU:

E270763

TouchPro Projected Capacitive touch technology with 10-point simultaneous touch input defines the Elo E270763, a 10.1-inch LCD touchscreen display module built for embedded integration in commercial and industrial environments. The panel resolves at 1280 x 800 in WXGA mode and delivers 400 Nit brightness across an active display area of 8.57 in x 5.36 in, with horizontal and vertical viewing angles of 178 degrees. Chemically strengthened cover glass carries an anti-glare treatment suited to demanding settings ranging from factory automation and medical displays to commercial kitchen equipment. Touch interface connects via USB, and the unit operates across a wide temperature range of -4 degrees F (-20 degrees C) to 140 degrees F (60 degrees C), supporting deployment where thermal conditions vary significantly. A 2-year warranty covers the unit.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo 10-inch I-Series Steel is a stainless-steel all-in-one touchscreen built for IT and operations teams deploying interactive terminals in demanding commercial and industrial environments. Running Android 14 with Google Mobile Services on a Qualcomm QCS6490 processor, backed by 8 GB of memory and 64 GB of storage, it delivers consistent performance for point-of-sale, self-service kiosks, kitchen display systems, and HMI applications in food service, healthcare, and manufacturing. Its 10.1-inch TouchPro PCAP display resolves at 1920 x 1200 and supports up to 10 simultaneous touches, while IP65-rated front and IP54-rated rear protection guard against water jets, dust, and daily sanitization. Integrated Wi-Fi 6, Bluetooth 5.2, Gigabit Ethernet, and optional Power over Ethernet simplify installation, and EloView cloud management enables remote provisioning and device oversight at scale.

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 10"
Viewable Screen Size 10.1"
Screen Mode WXGA
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Features Anti-glare
Active Display Area (H x V) 8.57" x 5.36"
Video
Maximum Resolution 1280 x 800
Brightness 400 Nit
Touchscreen Information
Touchscreen Type TouchPro Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
USB Yes
Environmental Conditions
Operating Temperature Range -4°F (-20°C) to 140°F (60°C)
Documents
ico-plus ico-minus
Product document touchpro-display.pdf E270763 Product document I-Series-5-Steel-Android.pdf MOD-10-I-SERIES-STEEL Product document i-series-linux.pdf MOD-10-I-SERIES-STEEL Product document i-series-5-android.pdf MOD-10-I-SERIES-STEEL Product document touchpro-display.pdf MOD-10-I-SERIES-STEEL
FAQs
ico-plus ico-minus
What operating system and processor power the Elo 10-inch I-Series STEEL Touchscreen?
It runs Android 14 with Google Play Services (AOSP capable) and EloView, driven by a Qualcomm QCS6490 processor paired with 8 GB of memory and 64 GB of storage.
What is the display resolution and brightness of the Elo 10-inch I-Series STEEL Touchscreen?
The 10.1-inch panel delivers a 1920 x 1200 resolution at 60 Hz with a 16:10 aspect ratio, an LCD panel brightness of 450 nits, and a PCAP brightness of 387 nits.
How well does the Elo 10-inch I-Series STEEL Touchscreen hold up in wet or dusty environments?
The front face is rated IP65 and the back is rated IP54, making it resistant to water jets and dust ingress, which suits commercial kitchens, food service, and industrial settings.
What wired and wireless connectivity does the Elo 10-inch I-Series STEEL Touchscreen offer?
Wired ports include one USB-A 3.0, one USB-C output, one RJ45 Gigabit Ethernet LAN, and one DC input, with Power over Ethernet supported up to 51 W on PoE-equipped units; wireless covers 802.11a/b/g/n/ac/ax (Wi-Fi 6) plus Bluetooth 5.2.
How is the Elo 10-inch I-Series STEEL Touchscreen managed across a large fleet of devices?
EloView provides cloud-based remote content deployment, OS management, and detailed settings control; bi-monthly Android security updates are available through an Elo OS 360 subscription.
What does the box contain and what is the standard warranty for the Elo 10-inch I-Series STEEL Touchscreen?
Non-PoE units ship with the I-Series Steel unit, a North American power cable, a European power cable, a power brick, a quick install guide, and two cable ties; PoE units include the unit, quick install guide, and two cable ties. The standard warranty is 2 years.
