Elo

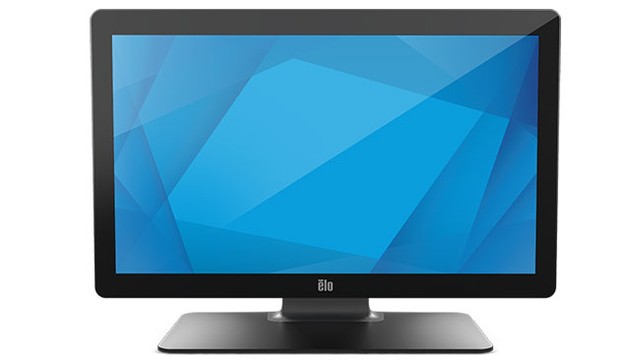

Elo 2203LM, 54.6cm (21.5''), Projected Capacitive, 10 TP, Full HD, black

SKU:

E380851

TFT screen, 16:9, 54.6cm (21.5''), Projected Capacitive, multi touch (10 points), resolution: 1920x1080 pixels, VESA mount (100x100 mm), DICOM 14, 14ms, brightness: 225cd, viewing angle: 178/178°(H/V), contrast: 1000:1, USB (type A, type B, micro-USB), VGA, HDMI, touch interface: USB, RS232, protection class: IP54, incl.: cable (USB, VGA, Audio, HDMI), power supply unit, power cable (EU, US), colour: black
Description
ico-plus ico-minus

The Elo 1903LM Medical Grade Touchscreen Monitor is a state-of-the-art 19-inch LCD display designed specifically for healthcare environments. Merging advanced touch technology with DICOM Part 14 compliance, this monitor enhances clinical workflows while elevating patient engagement. Its compact form factor and sleek design make it ideal for EMR documentation, image review, and collaboration within labs and pharmacies. With an IP54 rating, it assures durability and reliability in various medical settings.


Key Features
  • 19-inch LCD with Medical Grade compliance
  • TouchPro PCAP technology for precision touch functionality
  • DICOM Part 14 designed for consistent image review
  • Integrated 10-touch capability for enhanced usability
  • IP54 certified to withstand healthcare environments
  • Multiple mounting options including stands and wall mounts

Specifications
  • Color: Black or White
  • Diagonal Size: 19" (482.6 mm)
  • Active Touch Area: 14.76" x 11.80" / 374.78 mm x 299.83 mm
  • Touch Technology: TouchPro PCAP
  • Number of Touches: 10
  • Native Resolution: 1280 x 1024
  • Brightness: Panel 250 nits; with TouchPro PCAP 225 nits
  • Viewing Angle: Horizontal 178°, Vertical 178°
  • Weight: Unpackaged with stand 13.9 lbs / 6.3 kg
  • Operating Temperature: 0°C to 40°C
  • Warranty: 3 years standard

Main Features

  • Touch: Yes

  • Screen size: 22 inch

  • Connection: USB

  • Screen type: Capacitve

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 22"
Viewable Screen Size 21.5"
Screen Mode Full HD
Panel Technology Thin Film Transistor (TFT)
Response Time 14 ms
Response Time Details 14 ms Typical
Aspect Ratio 16:9
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Mount Type
  • Wall Mountable
  • Pole Mount
Backlight Technology LED
Features
  • Anti-glare
  • On-screen Display (OSD)
  • OnScreen Control
  • Water Resistant
  • Dust Resistant
  • Ergonomic Design
Horizontal Frequency 30 kHz to 82 kHz
Vertical Frequency 50 Hz to 75 Hz
Ingress Protection (IP) Rating IP54
Impact Protection (IK) Rating IK06
Video
Maximum Resolution 1920 x 1080
Color Supported 16.7 Million Colors
Native Contrast Ratio 1,000:1
Brightness 250 Nit
Audio
Speakers Yes
Touchscreen Information
Touchscreen Type TouchPro Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
Number of USB Ports 4
Built-in Devices
Built-in Devices USB Hub
Power Description
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Color Family Black
Product Color Black
Weight (Approximate) 10.58 lb
Documents
ico-plus ico-minus
Product document 2203lm-2021.pdf E380851 Product document mod-03-series-elo-monitor-datasheet.pdf MOD-03-SERIES Product document mod-03-series-elo-monitor-user-manual.pdf MOD-03-SERIES
