Datalogic

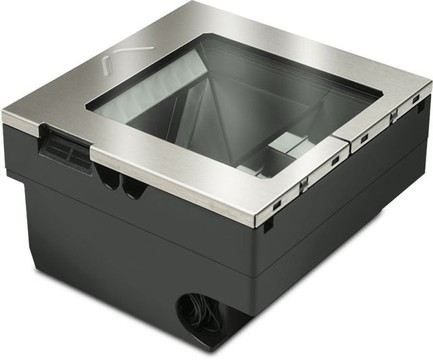

Datalogic Magellan 3510HSi In-Counter Scanner 2D, USB, Multi-IF, Sapphire Glass, IP52, micro SD

SKU:

M3511-010210

Magellan Sapphire 2D Imager — Datalogic Magellan 3500HSi Barcode Scanner. Reliable retail-grade 2D imager designed for accurate and efficient barcode capture at the point of sale. Attributes: scanner_type supported_symbologies form_factor interface interfaces mount_type scan_capability supported_scan_types window_material connectivity ingress_protection_rating housing_material connector_type cable_length included_cable_length power_consumption power_consumption_nominal power_consumption_maximum power_source decoding_capability imaging_technology imager_type micro_sd_card_slot memory_slot power_supply_type dimensions_footprint weight color
Description
ico-plus ico-minus

The Datalogic Magellan 3550HSi Barcode Scanner revolutionizes high-volume point-of-sale environments with its advanced digital imaging capabilities. This high-performance scanner ensures seamless reading of 1D, 2D, and even poorly printed barcodes, boosting productivity and enhancing the customer experience. Equipped with ergonomic features and optional mobile commerce capabilities, it allows cashiers to streamline transactions efficiently while engaging customers. Designed for reliability, its solid-state electronics promise silent and efficient operation, making it an ideal choice for modern retail applications.


Key Features
  • Advanced Imaging: Fast, accurate reading of all barcode types including Digimarc®.
  • Customer Engagement: Optional Magellan Customer Service Scanner for mobile coupon scanning.
  • Remote Management: Supports OPOS, JavaPOS, and more for seamless integration.
  • Diagnostics Reporting: Easy troubleshooting and maintenance.
  • Flexible Software: Image capture and upgradeable capabilities for future needs.

Specifications
  • Decoding Capability:
    • 1D/Linear Codes: Includes GS1 DataBar™.
    • 2D Codes: Supports QR Code, Data Matrix and more.
    • Digital Watermarks: Optional support for Digimarc® barcodes.
  • Electrical:
    • AC Input: 100-240 VAC, 50-60 Hz.
    • Power Consumption: Operating (Nominal): 3 Watts.
  • Environmental:
    • Operating Temperature: 10 to 40 °C (50 to 104 °F).
    • Humidity: 5-95% non-condensing.
  • Physical Characteristics:
    • Dimensions: 8.7 cm (D) x 15.2 cm (L) x 15.2 cm (W).
    • Weight: 0.98 kg (2.16 lb).
  • Warranty: 3-Year Factory Warranty.

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Connection: USB, RS232

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D :
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D :
  • Aztec Code; Data Matrix (ECC200 only); QR Code
Stacked Codes:
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
Image Sensor Type Imager
Scan Pattern
  • Linear
  • Omni-directional
Scanner Range Standard Range
Cable Type Included USB
Reading Angle (Skew) 75°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Image Formats
  • JPEG
  • BMP
Maximum Ambient Light 86100 lux
Minimum Print Contrast 25%
Interfaces/Ports
Host Interface
  • USB
  • Serial
Power Description
Power Supply Included Yes
Physical Characteristics
Form Factor In-counter
Width 6"
Depth 3.4"
Length 6"
Weight (Approximate) 2.16 lb
Miscellaneous
Ingress Protection (IP) Rating IP52
Application/Usage Retail
Environmentally Friendly Yes
Documents
ico-plus ico-minus
Product document magellan-3510hsi.pdf M3511-010210 Product document 3550hsi-2021.pdf MOD-MAGELLAN-3500H Product document magellan-3510hsi.pdf MOD-MAGELLAN-3500H
