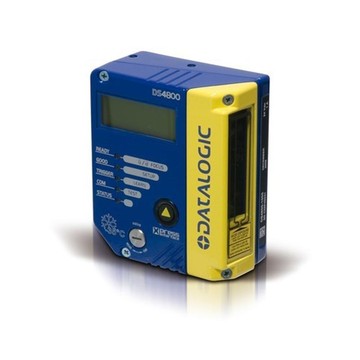

The Datalogic DS4800 is a compact and robust laser scanner designed for industrial applications that require high performance and flexibility. Thanks to its DIGITECHTM technology, intelligent focus adjustment, and ACR4TM reconstruction, it can read damaged or low-quality codes at high speeds, with a resolution of up to 0.20 mm and a range of up to 1000 mm. Its IP65 housing, X-PRESSTM interface, and connectivity via ID-NETTM and RS232/RS485 ports make it an efficient solution for traceability, automation, and process control in demanding environments.
Select model
Prices could not be updated.
Same-day shipping
for orders placed before 2:30 p.m.
Learn more
Secure payment with
Description
The Datalogic DS4800 is a corded industrial laser barcode scanner built for demanding automation and manufacturing environments. Designed for fixed-mount operation, it delivers high-speed 1D barcode reading at up to 1000 scans/s with a resolution of up to 0.20 mm (8 mils) and a reading distance of up to 1000 mm on 0.50 mm (20 mils) barcodes. DIGITECH™ technology optimizes signal processing for low-quality and low-contrast codes, while ACR4™ reconstruction technology maintains reliable decode rates on damaged labels. The X-PRESS™ Human Machine Interface simplifies installation and maintenance without specialist tools, and the embedded ID-NET™ port supports high-speed network communication at up to 1 Mbps. An IP65-rated aluminum housing withstands dust, moisture, vibration, and shock, making the DS4800 equally at home in automated warehousing, conveyor sorting, pallet reading, picking systems, and shop-floor traceability applications.
Documents
mod-datalogic-ds4800-datalogic-readers-datasheet.pdf MOD-DATALOGIC-DS4800
mod-datalogic-ds4800-datalogic-readers-quick-guide.pdf MOD-DATALOGIC-DS4800
mod-datalogic-ds4800-datalogic-readers-user-manual.pdf MOD-DATALOGIC-DS4800
FAQs
What industrial applications is the Datalogic DS4800 designed for?
The DS4800 is built for automated warehousing, picking systems, reading on pallets, automated shop floor operations, items and parts tracking, and process control systems.
What barcode symbologies can the Datalogic DS4800 read?
The DS4800 reads Code 2/5, Code 39, Code 93, Code 128, EAN/UPC, EAN128, Codabar, Pharmacode, and ISBT128, and can decode up to 10 different symbologies during the same reading phase.
What communication interfaces does the Datalogic DS4800 support?
The DS4800 provides a main port supporting RS232, RS422, and RS485 at up to 115.2 Kbit/s, an auxiliary RS232 port at up to 115.2 kbps, and an embedded ID-NET port running at up to 1 Mbps.
What are the key performance specifications of the Datalogic DS4800 in terms of speed, resolution, and reading distance?
The DS4800 scans at up to 1000 scans per second, achieves a resolution of up to 0.20 mm (8 mils), and reads up to 1000 mm away on 0.50 mm (20 mils) barcodes, with a depth of field of up to 600 mm on the same barcode size.
How rugged is the Datalogic DS4800, and what environmental conditions can it handle?
The DS4800 has an aluminum housing rated IP65, operates from 0 to 50°C, withstands humidity up to 90% non-condensing, and is tested to IEC 68-2-6 vibration and IEC 68-2-27 shock standards.
How is the Datalogic DS4800 configured and set up on the production line?
Setup can be performed using the on-device X-PRESS Human Machine Interface, which provides a five-LED bar graph and a single multi-function key for Auto Learn, Auto Setup, and Focus Lock functions, or through the multi-language Genius software tool connected via the serial interface.
