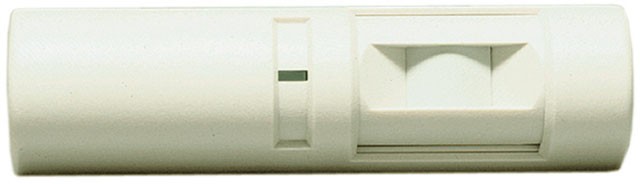

Bosch BOSCH-DS150I Sensors

The Bosch DS150i Access Control Equipment is expertly crafted for Request-to-Exit (REX) applications, ensuring seamless motion detection within its coverage area. With a flexible design suitable for single or double doors, this sensor can be wall or ceiling mounted, providing a wrap-around coverage pattern measuring 8 ft. x 10 ft. It features user-friendly options, including selectable relay trigger modes and programmable fail-safe or fail-secure modes, making it a reliable choice for modern access control systems.
Key features:

• Single or double door use
• Wall or ceiling mountable
• Internal vertical pointability
• Wrap-around coverage pattern
• Selectable relay trigger mode
• Selectable fail safe/fail secure modes
• Externally visible activation LED

Specifications:

• Type: DS150i Access Control Equipment
• Dimensions (HxWxD): 1.5 in. x 6.25 in. x 1.5 in. (3.8 cm x 15.9 cm x 3.8 cm)
• Operating Temperature: -20°F to +120°F (-29°C to +49°C)
• Power Requirements: 12 or 24 VAC, 12 or 24 VDC, 26 mA @ 12 VDC
• Relay Latch Time: Adjustable to 60 seconds
• Control Mode: Programmable resettable or non-resettable
• Enclosure Material: High impact ABS plastic
• Mounting Location: Surface mount on wall or ceiling
• Approvals: UL294, CE certified
