Bixolon

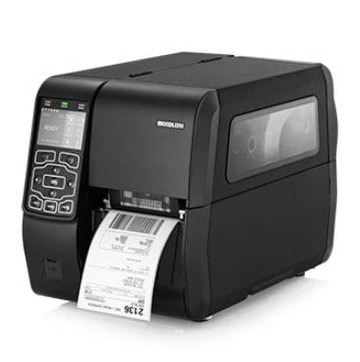

Bixolon XT5-40NS Label Printer Thermal Transfer, 203dpi, 356mm/s, 114mm, 512MB, Ethernet

SKU:

XT5-40NS

label printer, thermal transfer, resolution: 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 104 mm, roll diameter (max.): 203mm, speed (max.): 356 mm/s, USB (type B), USB Host, RS232 (9 pin), Ethernet, RAM: 512 MB, Flash: 512 MB, display (touch screen, colour), real time clock, Black Mark Sensor, Gap Sensor, incl.: power supply unit, power cable, colour: black
Description
ico-plus ico-minus
The Bixolon XT5-40 Barcode Label Printer is engineered for industrial use, offering premium performance and versatility in various applications, including warehouse, logistics, and retail. With a robust aluminum body and an anti-adhesive metal case, it ensures durability in demanding environments. This 4-inch thermal transfer printer boasts impressive print speeds of up to 14 inches per second and multiple resolution options, catering to the diverse needs of your business. The user-friendly design, including a 3.5-inch color TFT LCD and easy media loading, elevates operational efficiency while maintaining high print quality.
Key Features:
  • High Speed: Prints up to 14 ips (356 mm/sec).
  • Multiple Resolution Options: Choose from 203, 300, or 600 dpi.
  • Smart Connections: Simple Wi-Fi settings and fast Ethernet (1Gbit/sec).
  • Easy Maintenance: Toolless maintenance and adjustable printer head pressure.
  • Variety of Options: Auto cutter, peeler, rewinder, and more.

Specifications:
  • Print Method: Thermal Transfer, Direct Thermal
  • Print Speed: Up to 14 ips (XT5-40)
  • Print Resolution: 203 dpi, 300 dpi, 600 dpi options
  • Print Width: 104mm (XT5-40)
  • Media Types: Gap, Black Mark, Continuous, Fan-Fold
  • Dimensions: 269 x 490 x 324 mm
  • Weight: 13.98 kg
  • Power: EnergyStar Certified, 100-120V / 200-240V AC
  • Connectivity: USB, Ethernet, optional Bluetooth & WLAN
  • Operating Temperature: 5~40°C
  • Storage Temperature: -20~60°C

Main Features

  • Equipment Format: Desktop

  • RFID: Yes

  • Rugged: Industrial

  • Case color: Black

  • Connection: Serial, USB, Ethernet

  • Real Time Clock: Yes

  • Printing Technology: Thermal Transfer

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 14 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 13.12 ft
Maximum Print Width 4.09"
Barcode Symbology Supported
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC/EAN
  • UPC-A
  • UPC-E
  • IMB
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF417
  • QR Code
  • TLC 39
  • Micro PDF-417
  • GS1 DataBar (RSS-14)
Real Time Clock Yes
Application/Usage Desktop
Features
  • LCD Display
  • RFID Encoder
  • Auto-calibration
Optional Connectivity
  • Parallel
  • Wireless LAN
  • Bluetooth
Fonts Included
  • 10 SLCS
  • One SLCS
  • 16 BPL-Z
  • One BPL-Z
  • 9 BPL-D
  • Two BPL-D
  • 5 BPL-E
  • 23 Code Page
  • Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Print Technology Thermal Transfer
Memory
Standard Memory 512 MB
Interfaces/Ports
Serial Port Yes
USB Host Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Gigabit Ethernet
Display & Graphics
Display Screen Yes
Screen Size 4.3"
Display Screen Type LCD
Media Types & Handling
Media Type
  • Label
  • Gap
  • Black Mark
  • Notch
  • Continuous Label
  • Fanfold
Media Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter 7.99"
Maximum Label Width 4.49"
Fonts & Emulation
Language Emulation
  • SLCS
  • BPL-Z
  • BPL-E
  • BPL-D
Power Description
Power Source AC Supply
Input Voltage
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Temperature 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity 10% - 80%
Storage Temperature 68°F (20°C) - 140°F (60°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Color Family Black
Product Color Black
Height 12.8"
Width 10.6"
Depth 19.3"
Weight (Approximate) 30.82 lb
Miscellaneous
Power Cable Localization US
Platform Supported
  • Android
  • PC
  • iOS
Energy Star Yes
Documents
ico-plus ico-minus
Product document xt5-40.pdf XT5-40NS Product document xt5-40.pdf MOD-XT5-40
