Datalogic

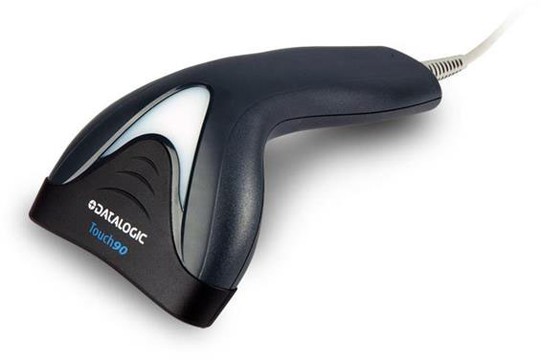

Scanners de Codes-Barres Portables Datalogic TD1120-BK-65

UGS :

TD1120-BK-65

Reaching a maximum scan resolution of 4 mil, the Datalogic TD1120-BK-65 is a corded, contact linear imager built for low-throughput 1D scanning across retail and similar close-contact environments. Its linear imager reads in an omni-directional scan pattern and covers depth-of-field ranges from 0 in to 3.2 in at 7.5 mil on Code 39, 0 in to 4.7 in at 10 mil on Code 39, and 0 in to 6 in at 13 mil on EAN13. Symbology support spans all standard 1D and GS1 DataBar linear codes, plus GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, and GS1 DataBar Expanded Stacked. The USB host interface connects the scanner to a host system, with the USB cable sold separately. The black handheld chassis measures 6.3 in tall, 2.3 in wide, and 3.3 in deep, weighing 4.60 oz, and is manufactured in Vietnam.
Les prix n’ont pas pu être mis à jour.
Description
ico-plus ico-minus
The Datalogic Touch TD1100 is a corded handheld contact linear imager barcode scanner designed for organizations that need a cost-effective, reliable solution for low-throughput barcode reading. Suited to retail service points, banking and finance, public administration, and libraries, it delivers excellent reading performance on virtually all 1D and stacked linear codes, including damaged or poorly printed barcodes. Two reading window sizes — 6.5 cm / 2.6 in and 9.0 cm / 3.5 in — accommodate both standard and wide codes on documents, books, and utility bills. USB and RS-232 interface options ensure broad host compatibility, while a drop resistance of 1.5 m / 5.0 ft adds durability that exceeds typical entry-level expectations. The compact, lightweight design and an innovative 'read-thru' holder also support comfortable hands-free operation at the point of service.

Caractéristiques principales

  • Système de Point de Vente: Oui

  • Couleur de l'étui: Black

  • connectivité: Corded

  • Connexion: USB

  • Capacité de numérisation: 1D, 2D, Imager

Spécifications techniques
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Barcode Symbology Supported

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Image Sensor Type
  • Imager
  • Linear
Maximum Scan Resolution 4 mil
Depth of Field
  • 0" - 3.2"@7.5mil - Code 39
  • 0" - 4.7"@10mil - Code 39
  • 0" - 6"@13mil - EAN13
Scan Pattern Omni-directional
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Handheld
Product Color Black
Height 6.3"
Width 2.3"
Depth 3.3"
Weight (Approximate) 4.60 oz
Miscellaneous
Additional Information

USB Cable separate
Country of Origin Vietnam
Documents
ico-plus ico-minus
Document produit td1100.pdf TD1120-BK-65 Document produit td1100-2021.pdf MOD-TD1100
