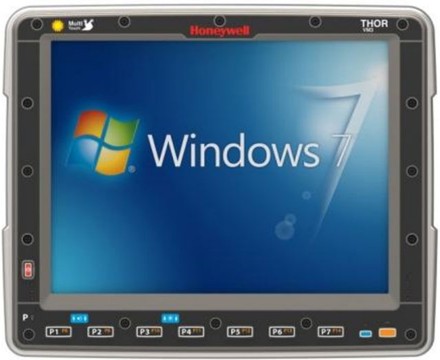

Terminaux de Montage pour Véhicule Honeywell VM3C1B2A1AUS01A

UGS :

VM3C1B2A1AUS01A

Honeywell's Thor VM1 vehicle mount computer, the ideal forklift computer, outdoes the competition with design breakthroughs. The Thor VM1 vehicle mount computer (VMC), part of the tenth generation of VMC developed by Honeywell, provides unprecedented flexibility in a mobile computer. Solidifying Honeywell's position as the leader in vehicle-mount computing, the Thor VM2 builds on the best-in-class Thor VM1 that was created specifically to address the unique challenges of supply chain applications
Description
ico-plus ico-minus
The Honeywell Thor VM3 Data Terminal is the ultimate vehicle-mounted computer engineered to thrive in the most challenging environments, such as distribution centers and manufacturing facilities. It delivers exceptional operational efficiencies with features like a **Smart Dock** for rapid mounting and removal, minimizing downtime. Users can easily manage maintenance costs with a **field-replaceable front panel**. With robust processing power, compatibility with multiple Windows operating systems, and an expandable memory option, the Thor VM3 ensures seamless integration into any existing IT infrastructure, maximizing productivity in real-time operations.
Key Features:
  • **Smart Dock** for quick mounting and dynamic computer shifts.
  • **Field-replaceable front panel** to reduce maintenance expenses.
  • **Built-in ignition control** to prevent vehicle battery issues.
  • **Dual Core 1.5 GHz Intel® processor** for data-intensive applications.
  • Supports multiple Windows versions for easy integration.

Specifications:
  • MECHANICAL
    • Dimensions: 318 x 260 x 62 mm (12.5 x 10.3 x 2.4 in)
    • Weight: 3.0 kg (6.65 lbs)
    • Operating Temperature: -30°C to +50°C (-22°F to +122°F)
    • Environmental Sealing: IP66 certified
  • SYSTEM ARCHITECTURE
    • Processor: 1.5 GHz Dual Core Intel Atom E3826
    • Memory: Expandable up to 4 GB
    • Mass Storage: 64 GB SSD, optional 4 GB mSATA
  • WIRELESS CONNECTIVITY
    • WWAN: Optional 4G LTE radio
    • WLAN: 802.11 a/b/g/n Wi-Fi certified
    • Bluetooth: Version 4.0 standard for wireless communication

Caractéristiques principales

  • Système: Windows

  • Connexion: Bluetooth, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Processor & Chipset
Processor Model E3826
Processor Core Dual-core (2 Core)
Processor Type Atom
Processor Speed 1.50 GHz
Memory
Standard Memory 4 GB
Flash Memory 2 GB
Display & Graphics
Screen Size 12.1"
Graphics Modes XGA
Display Screen Type LED
Touchscreen Yes
Display Resolution 1024 x 768
Network & Communication
Antenna Form Factor Internal
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45) Yes
Serial Yes
USB Yes
Headphone Yes
CANbus Yes
Built-in Devices
Built-in Devices
  • Speaker
  • Microphone
  • GPS Navigator
Software
Operating System Windows Embedded Compact 7
Physical Characteristics
Height 10.3"
Width 12.5"
Depth 2.4"
Weight (Approximate) 6.65 lb
Miscellaneous
Certifications & Standards
  • CE
  • Wi-Fi Certified
  • CCX Certified
  • EN 55024:2010
  • MIL-STD-810F
  • SAE-J1455
  • IP66
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Document produit vm3-new.pdf MOD-THOR-VM3
