Grandstream

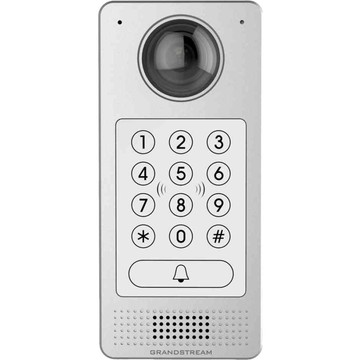

Routeurs Sans Fil Grandstream GDS3710

UGS :

GDS3710

Security Camera Systems, Grandstream, HD IP Video Door System, 2 Megapixel, 150 Degree Horizontal, 180 Degree Vertical, 0.5 lux, Full-duplex, Door Entry
Description
ico-plus ico-minus
Parts and products from Grandstream.
Technical Specifications
ico-plus ico-minus
Technical Information
Communication Mode Full-duplex
Camera
Camera Resolution 2 Megapixel
Minimum Illumination 0.5 lux
Horizontal Viewing Angle 150°
Vertical Viewing Angle 180°
Power Description
Input Voltage 12 V DC
Physical Characteristics
Durability
  • Vandal Resistant
  • Weather Proof
Height 6.8"
Width 3.1"
Depth 1.4"
Weight (Approximate) 1.32 lb
Miscellaneous
Application/Usage Door Entry
Additional Information
  • Video Compression H.264 High Profile / Main Profile / Base Profile, Motion JPEG
  • Image Sensor Resolution 1/2.7", 2 Megapixel, 1920H x 1080V
  • Lens Type 1/2", F2.5, FOV: 180°(W) x 150°(H)
  • Day & Night White LEDs with smart brightness control
  • Max Video Resolution 1920x1080
  • Max Frame Rate 30 frames per second
  • Wide Dynamic Range Yes, up to 120db
  • Video Bit Rates 128 Kbps to 4 Mbps, multi-rate for preview & recording
  • Embedded Analytics Motion detection (up to 4 privacy masks)
  • Snapshots Triggered upon events, sent via email and/or FTP
  • Multi-Stream Resolution
    • High-performance streaming server allowing multiple simultaneous access
    • Primary video stream: 1920 x 1080 resolution for continuous full HD recording
    • Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls
    • Third video stream: 320 x 240 resolution for smartphone applications
  • Network Protocol TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS local upload and mass provisioning using TR-069 (pending), ARP/RARP, ICMP, LLDP-MED, DNS, DHCP, SSH, SMTP, TFTP, NTP, STUN, TLS, SRTP
  • SIP/VoIP Support Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms
  • Voice Codecs G.711µ/a-law, G.722, DTMF (RFC2833, SIP INFO), AEC
  • QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)
  • Security User and administrator level access control (pending), MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, HTTPS, 802.1Q
  • Upgrade/ Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 (Pending) or AES encrypted XML configuration file
  • Audio Input Built-in microphone, up to 1.5m with AEC
  • Audio Output Built-in HD loudspeaker (2 watts), sound quality suitable for up to 3 m
  • Button 12-key touchpad plus a capacitive doorbell button, each with individual LED illumination
  • RFID 125KHz: EM4100 (1 RFID card and 1 RFID key fob included)
  • RFID Number Supported Up to 2,000 recommended
  • Alarm Input Yes, 2 channels, Vin < 15V, for door sensor or other devices
  • Alarm Output Yes, 125VAC/0.5A, 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other devices
  • Network Interface 10M/100M auto-sensing
  • Expansion Interface RS485, Wiegand (26 bits) input and output
  • Power Supply PoE IEEE 802.3af Class 3, or 12VDC/1A connection (AC power adapter not included)
  • Interoperability ONVIF (Profile S)
  • Ingress Protection Weather proof, vandal resistant, with support for extra back reinforcing metal plate
  • Temperature and Humidity
    • Operation: -30°C to 60°C (-22°F to 140°F)
    • Storage: -35°C to 60°C (-31°F to 140°F)
    • Humidity: 10% to 90% Non-condensing
  • Protection Class IP66 (EN60529), IK09 (IEC62262)
  • Compliance
    • FCC: Part 15 subpart B Class B; Part 15 C; MPE
    • CE: EN 55032 Class B; EN 61000-3-2; EN 61000-3-3; EN 50130; EN 60950-1; EN 300330;
    • EN 301489; EN 62311
    • RCM: AS/NZS CISPR 22; AS/NZS 4268; AS/NZS 60950.1
    • IC: ICES-003; RSS310
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS) 2
