Zebra

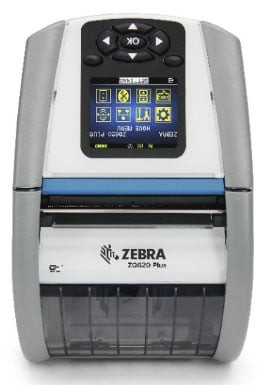

Imprimantes d'étiquettes Zebra ZQ62-HUFA0D4-00

UGS :

ZQ62-HUFA0D4-00

Mobile Printers, Zebra ZQ620 Plus-HC, Direct Thermal Printer, 3/72mm, Healthcare, English Fonts, Bluetooth 4.x, Linered Platen, 0.75 Core, Group 0, Belt Clip, No Battery Pack
Description
ico-plus ico-minus
Imprimante Mobile Zebra ZQ620 Plus Premium de 3 pouces de large pour le secteur de la santé. La première imprimante mobile WiFi 6 de l'industrie avec option radio double 802.11AX/Bluetooth 5.3 et itinérance rapide 802.11R pour des connexions plus rapides, plus fiables et plus sécurisées. Modèle radio double WiFi 5 (802.11AC)/Bluetooth 4.2 également disponible.

Caractéristiques principales

  • Format de l'équipement: Desktop

  • Système de Point de Vente: Oui

  • Connexion: Bluetooth

  • Technologie d'impression: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label/Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 4.53 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 32.01"
Maximum Print Width 2.83"
Barcode Symbology Supported
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • Codabar (NW-7)
  • Interleaved 2 of 5
  • UPC-A
  • UPC E with 2 and 5 add on
  • EAN-8
  • EAN-13
  • PDF417
  • Micro PDF-417
  • Maxi Code
  • QR Code
  • GS1 DataBar
  • AZTEC
  • MSI PLESSEY
  • FIM
  • POSTNET
  • Data Matrix
  • TLC 39
  • 2 and 5 Digits Add-on
Application/Usage
  • Desktop
  • Industrial
  • Mobile
Features
  • Belt Clip
  • Shoulder Strap
  • Dust Resistant
  • Water Resistant
Mobile Device Printing Yes
Ingress Protection (IP) Rating IP54
Character Sets
  • Universal Font Scaling Technology (UFST)
  • Agfa Monotype
Print Technology Direct Thermal
Memory
Standard Memory 256 MB
Network & Communication
Bluetooth Yes
Near Field Communication (NFC) Yes
Display & Graphics
Display Screen Yes
Media Types & Handling
Media Type
  • Gap
  • Black Mark
  • Receipt
  • Label
  • Die-cut Label
  • Tag
  • Linered Media
  • Black Bar
Media Sensor
  • Black Mark Sensor
  • Gap Sensor
Media Thickness 6.50 mil
Maximum Roll Diameter 2.60"
Maximum Label Width 3.13"
Maximum Label Length 32"
Fonts & Emulation
Language Emulation
  • CPCL
  • EPL
  • ZPL
  • ZBI 2.0
Software
Operating System Supported Link-OS
Power Description
Power Source Battery
Battery Information
Battery Capacity 3250 mAh
Environmental Conditions
Operating Temperature 32°F (0°C) - 122°F (50°C)
Operating Relative Humidity 10% - 90%
Storage Temperature -13°F (-25°C) - 149°F (65°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Height 3"
Width 4.6"
Depth 6.8"
Weight (Approximate) 1.61 lb
Miscellaneous
Platform Supported
  • iOS
  • Android
  • PC
Certifications & Standards

Emissions:

  • FCC Part 15
  • Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B


Susceptibility:

  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5


Safety:

  • CE
  • TUV
  • CSA
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Document produit zq600-series.pdf ZQ62-HUFA0D4-00 Document produit mod-zq620-plus-hc-zebra-label-printer-datasheet-1.pdf MOD-ZQ620-PLUS-HC Document produit mod-zq620-plus-hc-zebra-label-printer-quick-guide-2.pdf MOD-ZQ620-PLUS-HC Document produit mod-zq620-plus-hc-zebra-label-printer-user-manual.pdf MOD-ZQ620-PLUS-HC
