Elo

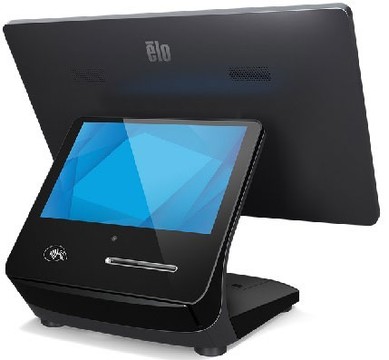

Tout-en-Un Elo E863808

UGS :

E863808

Point of Sale System, Elo Pay 7", Android 12 with GMS, 1920 x 1080 HD Display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Integrated Payment (NFC, EMV, MSR), 5MP Front Camera, EloView Compatible, Black, No Stand
Description
ico-plus ico-minus

The Elo Pay 7" POS System is a versatile, enterprise-grade payment terminal designed with merchants in mind. Featuring a vibrant 7-inch HD touchscreen and powered by Android 12, this compact POS system supports all payment methods including EMV, NFC, and MSR. With its modular design, it can be easily positioned on counters, mounted on stands, or integrated with various setups to fit different retail environments. Streamline transactions and enhance customer interactions effortlessly, thanks to built-in management tools like EloView for seamless operation.


Key Features
  • Integrated Payments: Supports Dip, Tap, and Swipe functionalities.
  • Robust Performance: Qualcomm Snapdragon 660 processor and Android 12 OS.
  • Flexible Mounting: Options to place on counters or integrate with stands.
  • Comprehensive Security: Regular updates and built-in enterprise-grade security protocols.
  • Responsive Touchscreen: 7" Optically Bonded LCD with 1920 x 1080 resolution.

Specifications
  • Display: 7" Optically Bonded LCD, 400 nits brightness, 1000:1 contrast ratio
  • Operating System: Android 12, Google Play Services
  • Processor: Qualcomm Snapdragon 660, 2.2GHz Octa-Core
  • Memory: 4GB RAM, 64GB Storage, MicroSD expansion
  • Connectivity: Wi-Fi (802.11a/b/g/n/ac), Bluetooth 5.0
  • Payment Readers: EMV Contactless, MSR, PCI-PTS 6.2 approved
  • Environmental Sealing: IP54 rated on the front panel
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Dimensions: 6.9" x 6.6" x 1.7" / 176 mm x 168.68 mm x 42.95 mm
  • Weight: 1.4 lbs / 0.616 kg
  • Warranty: 2 years standard, with extended options available

Caractéristiques principales

  • Système de Point de Vente: Oui

  • Connexion: USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0
Processor & Chipset
Processor Type Snapdragon
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Processor Model SD660
Memory
Standard Memory 4 GB
Memory Card Slot Yes
Memory Card Supported microSD
Storage
Flash Memory Capacity 64 GB
Flash Memory Type Embedded MultiMediaCard (e.MMC)
Display & Graphics
Screen Size 7"
Display Screen Type LCD
Screen Mode HD
Touchscreen Yes
Touchscreen Technology Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touch Points 10
Contrast Ratio 1,000:1
Network & Communication
Wireless LAN Yes
Interfaces/Ports
USB Yes
Powered USB Yes
USB Type-C Yes
Number of USB Type C Ports 1
Built-in Devices
Number of Speakers 1
Speaker Power 1 W
Magnetic Stripe Reader Yes
Software
Operating System Android 12
Physical Characteristics
Color Family Black
Product Color Black
Height 6.6"
Width 6.9"
Depth 1.7"
Weight (Approximate) 1.40 lb
Miscellaneous
Ingress Protection (IP) Rating IP54
Documents
ico-plus ico-minus
Document produit elo-pay-7.pdf E863808 Document produit elo-pay-7.pdf MOD-ELO-PAY-7
