QBOID

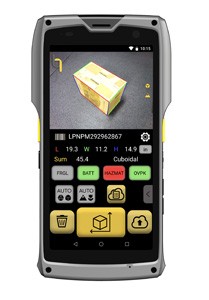

Terminaux Portables QBOID M2

UGS :

M2

Mobile Computer, QBOID M2 Perceptor, Instantly Capture Item Cube Dimensions and Shape Classification, Simple API Integration with WMS or QBOID Cloud. Integrated 3D Image Sensors, Zebra 1D/2D Barcode Scan Engine, Android 10 OS, 6” Touchscreen, Wi-Fi/Bluetooth, Hot Swap Battery, USB-C Data + Charging.
Description
ico-plus ico-minus

The QBOID M2 Perceptor Mobile Computer revolutionizes logistics with its advanced dimension and shape data capture capabilities. Perfectly designed for eCommerce, 3PL, and shipping operations, this handheld device combines 3D and 2D image sensors with a powerful barcode scanning engine. Capture accurate dimensions (LxWxH) and identify item shapes within seconds, all through an intuitive, smartphone-like interface. Its durable design and Android 10 OS allow seamless integration into existing applications, making it a must-have for any professional looking to optimize their storage and shipping processes.


Key Features
  • Fast and Accurate: Dimension cube results in just 0.1 seconds.
  • User-Friendly: Familiar smartphone app UX for easier operator training.
  • Seamless Integration: Easily integrate with existing Android or Web applications using the M2 API.
  • Robust Connectivity: Wi-Fi and Bluetooth for data upload and sync options.
  • Durable Design: IP65 rated and semi-rugged, with a 5000mAh hot-swappable battery.

Specifications
  • Dimensions: 6.9 x 1.4 x 3.6 inches
  • Weight: 440 grams
  • Operating System: Android 10 AOSP
  • Processor: Qualcomm SDM660
  • RAM: 4GB
  • Flash Memory: 64GB
  • Display: 5.99" capacitive touchscreen
  • Battery: 5000 mAh
  • Operating Temp: +5° to 35°C
  • IP Rating: IP65
  • Drop Rating: Semi-rugged: 1.0m drop to concrete
  • Barcode Scan Engine: Zebra SE4100 1D-2D Scanner
Technical Specifications
ico-plus ico-minus
Technical Information
Receptacles 2
Power Description
Input Voltage 120 V AC
Output Voltage 120 V AC
Maximum Line Current 15 A
Maximum Surge Current 52 kA
Power Handling 1800 VA
Surge Energy Rating 1350 J
Controls/Indicators
Status Indicators
  • 4 x Diagnostic LED
    		•
    Physical Characteristics
    Height 5.5"
    Width 3.5"
    Depth 2"
    Weight (Approximate) 11.84 oz
    Miscellaneous
    Additional Information

    Protection Circuitry:

    • SurgeGate Plus Circuitry
    • Protect or Disconnect Circuitry

    AC Line Protection:

    • Thermal Fusing
    • Integrated Cord Management
    • Uses Electrical AC Ground
    • Plug Configuration: Direct Plug-in
    • Initial Clamping Level: 200V Peak, 141 Rms
    • Response Time: 1-5 Nanoseconds
    • Protection Modes: L-N, L-G, N-G
    • UL 1449 Rating: 330V
    Compatibility

    Applications:

    • SOHO
    • Alarms
    • Printers
    • Copiers
    • Cameras
    • TVs / VCRs
    • Workstations
    • Fax Machines
    • Access Controls
    • Telephone Systems
    Certifications & Standards

    UL 1449
    Warranty
    Limited Warranty Lifetime
    Documents
    ico-plus ico-minus
    Document produit m2.pdf M2 Document produit m2-2024.pdf MOD-QBOID-M2-PERCEPTOR
