Datalogic

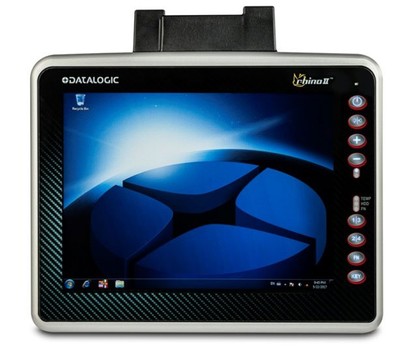

Terminaux de Montage pour Véhicule Datalogic 94R501101

UGS :

94R501101

Data Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows Embedded Compact 7, 24-48 Vdc, Internal Antenna, Laird M2SD50, QMX
Description
ico-plus ico-minus

The Rhino II™ Vehicle Mounted Computer is designed for rugged use in demanding warehouse environments. Available in 10" and 12" display sizes, it boasts an IP65/IP67 sealed design, ensuring durability against dust and moisture. Its integrated display heater allows seamless operation in cold storage facilities. Enhanced with a capacitive touch screen covered by 3 mm anti-glare armored glass, users can operate it even while wearing gloves. The Rhino II’s efficient design boosts productivity during various warehouse tasks like receiving, picking, and shipping, making it an essential tool for modern logistics operations.


Key Features
  • Multiple Operating Systems: Windows Embedded Compact 7, Windows 10 IoT Enterprise, and Android 7.1 Nougat.
  • Display: High-resolution 10" or 12" anti-glare capacitive multi-touch screen.
  • Wireless Connectivity: WLAN and Bluetooth® 4.0 supported.
  • Sealed Protection: Rated IP65/IP67 for dust and water resistance.
  • Wide Temperature Range: Operates from -20°C to 55°C/-4°F to 131°F.

Specifications
  • Dimensions: 10 inch: 27.8 x 22.3 x 6.4 cm; 12 inch: 32.4 x 25.1 x 7.1 cm.
  • Weight: 10" models: 3.4 kg; 12" models: 4.7 kg.
  • Power Supply: 12 VDC; 24/48 VDC internal options available.
  • Humidity: Operating at 10 to 90% non-condensing.
  • Interfaces: 1 x GbE, 2 x USB 2.0, 1 x USB 3.0 (Win7/10 only), 2 x RS-232.
  • Operating Temperature: -20°C to 55°C; freezer model -30°C (-22°F).
  • Warranty: 1-Year Factory Warranty.

Caractéristiques principales

  • Système: Windows

  • Robuste: Industrial

  • Connexion: Bluetooth, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Processor & Chipset
Processor Core Quad-core (4 Core)
Processor Speed 1 GHz
Memory
Standard Memory 1 GB
Flash Memory 32 GB
Memory Card Supported SDHC
Display & Graphics
Screen Size 12.1"
Graphics Modes XGA
Touchscreen Yes
Touchscreen Type Projected Capacitive
Display Resolution 1024 x 768
Network & Communication
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45) Yes
Serial Yes
USB Yes
Power Description
Power Source Power Supply
Software
Operating System Windows Embedded Compact 7
Physical Characteristics
Weight (Approximate) 10.36 lb
Miscellaneous
Certifications & Standards
  • CE
  • FCC
  • IP65
  • IP67
  • EN 60721-3-5: 1998
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Document produit rhino-ii-2021.pdf MOD-RHINOII
