HP

Serveurs HP P54649-001

UGS :

P54649-001

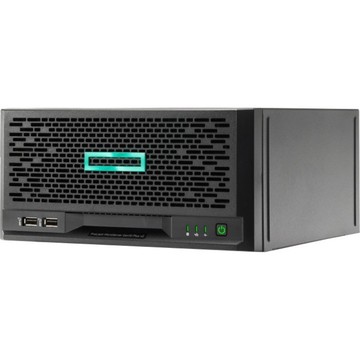

ProLiant MicroServer Gen10 Plus V2 Server by HPE. Part in the Servers category for compatible devices and related deployments.
Technical Specifications
ico-plus ico-minus
Processor
Number of Processors Supported 1
Number of Processors Installed 1
Processor Type Xeon
Processor Model E-2314
Processor Core Quad-core (4 Core)
Processor Speed 2.80 GHz
Cache 8 MB
Chipset
Chipset Manufacturer Intel
Chipset Model C252
Memory
Standard Memory 16 GB
Maximum Memory Supported 64 GB
Memory Technology DDR4 SDRAM
Error Checking ECC
Total Number of Memory Slots 2
Number of Occupied Memory Slots 1
Signal Processing Unregistered (Unbuffered)
Storage
Total Hard Drive Capacity No
Optical Drive Type No
Controllers
Controller Type Serial ATA
Controller Model VROC
I/O Expansions
Number of Total Expansion Bays 4
Number of 3.5" Bays 4
Number of LFF Bays 4
Hot Swappable Bays No
Total Number of Expansion Slots 1
PCI Express Details 1 standard (Low Profile) PCIe 4.0
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports 7
Number of USB 2.0 Ports 1
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 4
VGA Yes
Number of VGA Ports 1
DisplayPort Yes
Number of DisplayPorts 1
Operating System
Operating System Supported
  • Windows Server 2019 Essentials
  • Windows Server 2019 Standard
  • Windows Server 2019 Datacenter
  • Hyper-V
  • Windows Server 2022 Essentials
  • Windows Server 2022 Standard
  • Windows Server 2022 Datacenter
  • Red Hat Enterprise Linux 8.4
Operating System No
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported 1
Number of Power Supplies Installed 1
Plug/Connector Type C5
Maximum Power Supply Wattage 180 W
Redundant Power Supply No
Physical Characteristics
Form Factor Ultra Micro Tower
Height 4.7"
Width 9.7"
Depth 9.7"
Weight (Approximate) 15.87 lb
Miscellaneous
Package Contents
  • ProLiant MicroServer Gen10 Plus V2 Server
  • 6 ft/1.83m C5 Power Cord
  • 1 x 180W External Power Adapter
Security Features
  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-2 validation
  • Common Criteria certification
  • Configurable for PCI DSS compliance
  • Ability to rollback firmware
  • Secure erase of NAND/User data
  • TPM (Trusted Platform Module) 2.0 option
  • Front bezel lock feature, standard
  • Padlock slot, standard
  • Kensington Lock slot, standard
  • Power cord clip, standard
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 1 Year
Additional Warranty Information

Server Warranty includes 1- Year Parts, 1-Year Labor, 1- Year Onsite support with next business day response
