Juniper Networks

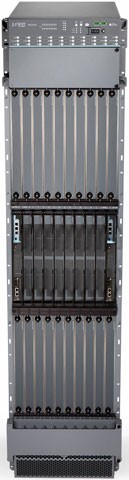

Routeurs Sans Fil Juniper Networks MX2020-PREMIUM-DC

UGS :

MX2020-PREMIUM-DC

20 Slot MX2000 Chassis, Base with 2 RE, Fan Trays, DC Power, Discounted Switch Fabric (8 nos)
Description
ico-plus ico-minus

The Juniper Networks MX2000 Wireless Router is a powerhouse designed for telecom providers and cloud builders facing escalating bandwidth demands. With service-oriented architecture, this router scales effectively for current and future needs without compromising on performance. The MX2000 line combines high capacity and unparalleled reliability, making it an ideal choice for businesses seeking dynamic digital services. Its SDN-ready design ensures seamless integration into existing frameworks, maximizing operational efficiencies and offering advanced service delivery. Upgrade your network capabilities effortlessly with the MX2000's exceptional edge routing technology.


Key Features:
  • High Capacity: Up to 80 Tbps with MX2020 model.
  • SDN-Ready: Flexible, software-centric architecture.
  • Modular Design: Supports a wide range of Modular Port Concentrators.
  • Nonstop Availability: Comprehensive redundancy features.
  • Integrated Edge Services: Offers various security and traffic management features.

Specifications:
  • Dimensions: MX2020 - 78.75 x 36.2 x 17.5 in (200 x 91.95 x 44.45 cm)
  • Weight: MX2020 - 1,500 lbs (680.39 kg)
  • Power Options: AC or DC configurations available.
  • Operating System: Junos OS for seamless integration and management.
  • Peak Throughput: .6W/GbE power-to-throughput efficiency.
Technical Specifications
ico-plus ico-minus
I/O Expansions
Total Number of Expansion Slots 20
Expansion Slot Type
  • Routing Engine
  • Switch Fabric Card
Power Description
Input Voltage 48 V DC
Redundant Power Supply Supported Yes
Power Source Power Supply
Physical Characteristics
Compatible Rack Unit 45U
Form Factor Rack-mountable
Height 78.8"
Width 17.5"
Depth 36.2"
Weight (Approximate) 1500 lb
Miscellaneous
Package Contents
  • MX2020 Router Chassis
  • Redundant Routing Engine
  • SFBs
  • Fan Trays
  • DC Power Supply
Certifications & Standards

Safety:

  • CAN/CSA-C22.2 No. 60950-1
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1
  • EN 60825-1

EMC:

  • AS/NZS CISPR22 Class A
  • N55022 Class A
  • FCC Part 15 Class A
  • VCCI Class A

Immunity:

  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-11

ETSI:

  • ETSI EN-300386-2

NEBS:

  • SR-3580 NEBS Criteria Levels (Level 3 Compliance)
  • GR-63-CORE: NEBS, Physical Protection
  • GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment
  • DT EMC requirements as per their requirement spec "1TR9"
  • BT Mobile Immunity Requirements
  • NEBS Compliance (with AT&T NEBS, Verizon NEBS)
  • ETSI 300019
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Document produit mx2000.pdf MX2020-PREMIUM-DC Document produit mx2000.pdf MOD-JUNIPER-MX2000
