Elo

Moniteurs Elo E396119

UGS :

E396119

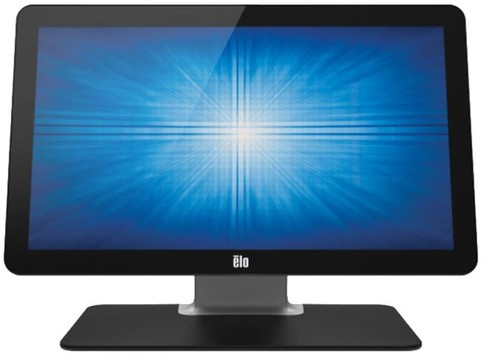

19.5" Touchscreen Monitor, Elo 2002L, Desktop LCD, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 225 nits Brightness (typical), 3000:1 Contrast Ratio (typical), mini-VGA and HDMI Video Interface, USB Touch Controller Interface, Anti-Glare, Zero-Bezel, No Stand, Black, 3-Year Warranty, Speakers, Worldwide. Box Includes Mini-VGA to VGA Cable (mini-VGA to DE-15 (DB-15) male), USB Cable (USB Type A Plug to USB Type B Plug), HDMI Cable, Audio Cable, User Manual CD, Quick Install Guide, Power Brick with US, EU, UK, KR, AU and CN Clips.
Description
ico-plus ico-minus

The Elo 1502L Touchscreen Monitor combines modern design with robust functionality, making it the perfect interactive solution for retail environments. Featuring a sleek edge-to-edge glass display, this 15-inch LED touch monitor supports 10 touch points for seamless customer engagement. Its anti-glare surface enhances visibility, and the energy-efficient design saves power without compromising on performance. Built to last with “Built for Touch” reliability, the 1502L is ideal for high-use settings like POS terminals, ensuring employee effectiveness and an engaging customer experience.


Key Features:
  • Stylish Widescreen Design: Fits seamlessly in modern retail spaces.
  • IntelliTouch Pro: Projected capacitive with 10-touch capabilities.
  • Flexible Mounting Options: VESA compatible for various installations.
  • Integrated Retail Accessories: Optional magnetic stripe reader, barcode scanner, and NFC reader.
  • Three-Year Warranty: Assurance of quality and reliability.

Specifications:
  • Model: 1502L
  • Color: Black
  • Active Display Area: 10.06" x 7.66" (345.2mm x 194.6mm)
  • Diagonal Size: 15.6 inches
  • Resolution: Full HD 1920 x 1080 or HD 1366 x 768
  • Brightness: 300 nits (Full HD), 220 nits (HD)
  • Weight: 6.72 lbs (3.05 kg) with stand
  • Operating Temperature: 0 °C to 40 °C
  • Warranty: 3 years standard
  • Touch Technology: Projected Capacitive (PCAP)

Caractéristiques principales

  • Toucher: Oui

  • Connexion: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 20"
Viewable Screen Size 19.5"
Screen Mode Full HD
Panel Technology Thin Film Transistor (TFT)
Response Time 20 ms
Aspect Ratio 16:9
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Mount Type
  • Wall Mountable
  • Pole Mount
  • Shelf Mount
  • Floor-mountable
  • Desk Mountable
Placement Tabletop
Backlight Technology LED
HDCP Supported Yes
Features
  • On-screen Display (OSD)
  • Anti-glare
Horizontal Frequency 31.50 kHz to 80 kHz
Vertical Frequency 50 Hz to 60 Hz
Curved Screen No
Video
Maximum Resolution 1920 x 1080
Color Supported 16.7 Million Colors
Contrast Ratio 3,000:1
Native Contrast Ratio 3,000:1
Brightness 250 Nit
Maximum Refresh Rate 60 Hz
Audio
Speakers Yes
Number of Speakers 2
Speaker Output Power 4 W
Touchscreen Information
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
Power Description
Operating Power Consumption 18.40 W
Standby Power Consumption 330 mW
Off-Mode Power Consumption 240 mW
Energy Consumption per Year 27 kWh
Input Voltage Range 100V to 240V
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Color Family Black
Product Color Black
Height 11.6"
Width 19.2"
Depth 1.5"
Height with Stand 13.87"
Width with Stand 19.22"
Depth with Stand 7.61"
Weight (Approximate) 7.25 lb
Weight with Stand (Approximate) 11.68 lb
Miscellaneous
Additional Information
  • Accessible through switches along the bottom.
  • Controls: Menu, Power, Up, Down, Select
  • Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select
  • Lockouts: OSD, Power
  • Input Connector: Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)
  • Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
  • Ingress Protection: IPX1 for front side
Mean Time Between Failures (MTBF) 5.7 Year
Documents
ico-plus ico-minus
Document produit 2002l-2021.pdf E396119 Document produit 1502l.pdf MOD-1002L-1502L-2002L Document produit 1502lm.pdf MOD-1002L-1502L-2002L Document produit elopos-15.pdf MOD-1002L-1502L-2002L Document produit i-series-linux.pdf MOD-1002L-1502L-2002L Document produit i-series-5-android.pdf MOD-1002L-1502L-2002L Document produit i-series-5-slate-android.pdf MOD-1002L-1502L-2002L Document produit touchpro-display.pdf MOD-1002L-1502L-2002L
