Honeywell

Lecteurs Honeywell MK3780-61B41-6

UGS :

MK3780-61B41-6

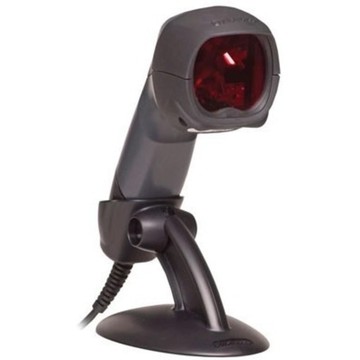

The Honeywell MK3780-61B41-6 is an RS-232 kit built around a serial host interface, bundling the dark gray MS3780 Fusion scanner with an adjustable stand, a US Level 6 power supply, a coiled RS-232 PowerLink cable, and documentation in a single package. The scanner uses laser light to read standard 1D and GS1 DataBar symbologies across a 20-line omnidirectional scan pattern, with a secondary single-line mode activated via the integrated CodeGate button for precise code selection when barcodes are densely spaced. An integrated IR sensor triggers the laser automatically in stand mode, enabling hands-free presentation scanning without operator input. The handheld unit weighs 6.88 oz and measures 7.4 in long, 2.6 in wide, and 2.9 in tall, finished in dark gray. Flash ROM and user-replaceable cables support long-term field serviceability. The kit is RoHS and WEEE compliant and carries a 3-year limited warranty, positioning it for medium-volume retail countertop deployments such as specialty stores, pharmacies and convenience stores.
Les prix n’ont pas pu être mis à jour.
Description
ico-plus ico-minus

The Honeywell Fusion 3780 Barcode Scanner is an affordable, omnidirectional laser scanner designed for efficiency in retail environments. Combining both omnidirectional and single-line scanning capabilities, this lightweight and ergonomic device enhances checkout processes across various venues, including pharmacies, specialty stores, and convenience shops. Its automatic in-stand operation, adjustable stand for comfort, and patented CodeGate® feature ensure superior performance, while the integrated infra-red sensor optimizes scanning efficiency. Built for durability and equipped with user-centric features, the Fusion 3780 is an excellent investment for medium-volume retailers.


Key Features
  • Omnidirectional Scan Pattern: Aggressive scanning in any orientation to boost throughput.
  • Single-Line Scan Pattern: Switch to targeted single-line scanning with a simple button press.
  • Automatic In-Stand Detection: Hands-free operation for reduced operator fatigue.
  • Sleep Mode With IR Wake Up: Extends operational life by reducing power consumption.
  • Optional Integration of RF EAS Antenna: Deactivates RF EAS tags while decoding bar codes simultaneously.

Specifications
  • Dimensions: 189 mm x 65 mm x 73 mm (7.4" x 2.6" x 2.9")
  • Weight: 195 g (6.9 oz)
  • Input Voltage: 5 VDC ± 0.25 V
  • Operating Power: 1.4 W (275 mA @ 5 V)
  • Standby Power: 1.0 W (200 mA @ 5 V)
  • Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA
  • Operating Temperature: -20°C to 40°C (-4°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Humidity: 5% to 95% relative humidity, non-condensing
  • Drop: Designed to withstand multiple 1.5 m (5') drop
  • Environmental Sealing: Sealed to resist airborne particulate contaminants
  • Light Levels: 4842 Lux
  • Scan Pattern: Omnidirectional and single line
  • Scan Speed: Omnidirectional: 1,333 scan lines/second; Single line: 67 scan lines/second
  • Decode Capability: Reads standard 1D and GS1 DataBar symbologies
  • Warranty: 3 year factory warranty

Caractéristiques principales

  • connectivité: Corded

  • Connexion: Serial

  • Capacité de numérisation: 1D

Spécifications techniques
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Barcode Symbology Supported Reads standard 1D and GS1 DataBar symbologies
Light Source Laser
Interfaces/Ports
Host Interface Serial
Physical Characteristics
Color Dark Gray
Height 2.9"
Width 2.6"
Length 7.4"
Weight (Approximate) 6.88 oz
Miscellaneous
Environmentally Friendly Yes
Environmental Certification
  • RoHS
  • WEEE
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Document produit mod-ms3780fusion-honeywell-readers-datasheet.pdf MK3780-61B41-6 Document produit mod-ms3780fusion-honeywell-readers-user-manual.pdf MK3780-61B41-6 Document produit honeywell-3780fusion.pdf MK3780-61B41-6 Document produit ms3780.pdf MOD-MS3780FUSION
