Lecteurs Datalogic 932500001

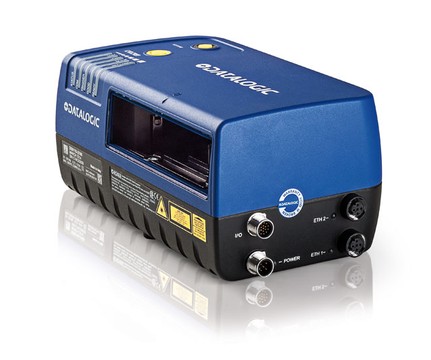

The DataLogic DS8110 Barcode Scanner elevates efficiency in challenging environments, making it an ideal choice for Parcel Sorting and Baggage Handling applications. With over 30 years of innovation, this barcode reader features cutting-edge Digital Signal Technology (DST) that enhances depth of field (DoF) and field of view (FoV), ensuring reliable reading even with low-quality codes. Unequaled in performance, the DS8110 is designed for seamless integration and ease of use, empowering logistic operators to achieve timely deliveries daily.

Key features:

• Top Class Reading Performance leveraging Datalogic exclusive technologies.
• Reliable operation under unpredictable reading conditions with DST.
• Outstanding DoF and FoV thanks to ASTRA G3 technology.
• High-speed data transmission via Ethernet Bus Connections (EBC).
• Fully redundant configuration to prevent deadlocks during component failure.
• Compact and lightweight design for easy installation.
• Seamless integration with e-GENIUS web-based configuration tools.

Specifications:

• Reading Distance: 500-1900 mm (20-75 in)
• Max Resolution: Min: 0.25mm (10mils)/Max: 0.50mm (20mils)
• Scan Rate: Typ.: 1000 scans/s
• Scan Pattern Type: Linear
• Aperture Angle: 60 degrees
• Multilabel Reading: Up to 10 different symbologies
• Case Material: Aluminum alloy
• Dimensions: 216 x 96 x 127 mm [8.5 x 3.8 x 5 in]
• Weight: 2.0 kg (4.4 lb)
• Temperature Range: 0° - 50°C
• Power Supply/Consumption: 20 to 30 VDC; 20 W
• IP Rating: IP65
• Ethernet: 2 x Ethernet TCP/IP
• Serial Interfaces: RS232/RS422 up to 115.2 Kbit/s
• Digital Inputs: 3 x optocoupled NPN/PNP
• Digital Outputs: 2 x SW programmable NPN
• Configuration Software: e-GENIUS web browser
