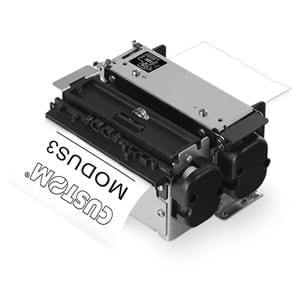

Imprimantes Kiosk Custom 915LF020200300

UGS :

915LF020200300

Kiosk Receipt Printer, Custom America MODUS 3, PROP MODUS3 X, USB and RS232 Connectivity, Left-Side Notch Design, Durable Compact Configuration
Description
ico-plus ico-minus
The Custom-America Modus 3 features dependable power with minimal space usage. The Modus 3 joins all the features of a self service printer with an incredible compactness. The Modus 3 is a 2"-3" (54-82.5mm) receipt & label printer to meet the needs of slim-line kiosks without sacrificing features and functionality.

Caractéristiques principales

  • Connexion: Serial, USB

  • Technologie d'impression: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Ticket Print
Print Color Capability Monochrome
Maximum Mono Print Speed 7.87 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 3.15"
Barcode Symbology Supported
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Code 39
  • ITF
  • Code 128
  • Code 32
  • QR Code
  • Codabar
  • AZTEC
  • Data Matrix
  • PDF417
Application/Usage
  • Kiosk
  • Parking
  • Vending Machine
  • Sales/Service
Features
  • Ultra Compact
  • Anti-jam Technology
Character Sets
  • PC437
  • PC850
  • PC858
  • PC860
  • PC862
  • PC863
  • PC864
  • PC865
  • PC866
  • International
Print Head Life 150Km
Connectivity Technology Wired
Print Technology Direct Thermal
Memory
Standard Memory 128 KB
Flash Memory 768 KB
Interfaces/Ports
Serial Port Yes
USB Yes
USB Standard USB 2.0
Cutter
Cutter Yes
Cutter Life 1000000 Cuts
Media Types & Handling
Media Type Ticket
Media Sensor
  • Head Temperature Sensor
  • Cover Close Sensor
  • Black Mark Sensor
Media Thickness 4.72 mil
Fonts & Emulation
Language Emulation Custom/POS
Software
Operating System Supported
  • Windows (32/64 bit) - only on request WHQL and silent installation
  • CUPS Linux (32/64 bit)
  • Virtual COM (Linux or Windows 32/64 bit)
  • OPOS
  • JavaPOS
Power Description
Power Source
  • AC Supply
  • DC
Environmental Conditions
Operating Temperature -4°F (-20°C) - 158°F (70°C)
Physical Characteristics
Height 2.4"
Width 4.6"
Depth 2"
Weight (Approximate) 14.11 oz
Miscellaneous
Platform Supported
  • PC
  • Android
