Logic Controls

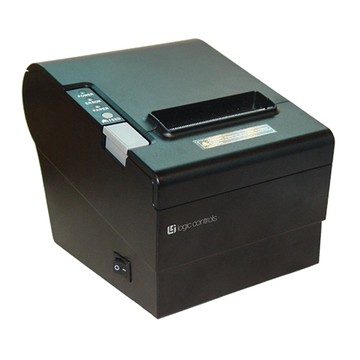

Imprimantes de Receipts Logic Controls LR2000E

UGS :

LR2000E

Receipt Printer, Logic Controls LR2000, A thermal receipt printer with USB, serial, and Ethernet interfaces for maximum flexibility. Prints at high speed with reliable ESC/POS compatibility for retail checkouts.
Description
ico-plus ico-minus

The Logic Controls LR2000 Thermal Printer is a high-speed, reliable receipt printer built for both retail and hospitality environments. Featuring direct thermal printing technology, it delivers sharp, clear receipts at up to 250 mm per second, ensuring quick transactions and efficient service. With support for USB, RS-232, and optional Ethernet connectivity, it integrates seamlessly into a wide range of POS systems. Its compact, durable design is made for long-term use, with a print head life rated at 15 million lines and an auto cutter rated for 1 million cuts. Compatible with ESC/POS commands and backed by a 3-year warranty, the LR2000 provides the performance and dependability businesses need.


Key Features

  • High-speed thermal printing at up to 250 mm/sec

  • Flexible connectivity: USB, RS-232, and optional Ethernet

  • Durable design with auto cutter rated for 1 million cuts

  • Print head life rated for 15 million lines

  • Compact size, ideal for retail and hospitality counters

  • ESC/POS command compatible

  • 3-Year Warranty


Specifications
Printing: Direct thermal line printing, 180 x 180 dpi resolution, 72 mm print width
Speed: Up to 250 mm/sec
Print Life: Print head: 15 million lines (approx. 100 km), Auto cutter: 1 million cuts, MCBF: 60 million lines
Interfaces: USB Type B, RS-232 Serial, optional RJ45 Ethernet
Cash Drawer Port: RJ11 connector
Dimensions: 5.7" (W) x 7.7" (D) x 5.8" (H)
Weight: 3.4 lbs (1.5 kg)
Power: External AC 100–240 V, 24 V DC / 2.5 A
Environment: Operating 0–50°C (32–122°F), 10–90% RH non-condensing
Certifications: CE, FCC, UKCA, RoHS

Caractéristiques principales

  • Format de l'équipement: Desktop

  • Connexion: Serial, USB, Ethernet

  • Technologie d'impression: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 9.84 in/s
Maximum Print Resolution (dpi) 180 x 180
Maximum Print Width 2.83"
Application/Usage Desktop
Print Technology Direct Thermal
Memory
Standard Memory 8 KB
Interfaces/Ports
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Cutter
Cutter Life 1000000 Cuts
Media Types & Handling
Media Type Label
Maximum Label Width 3.13"
Power Description
Power Source AC Supply
Physical Characteristics
Height 5.9"
Width 5.7"
Depth 7.8"
Weight (Approximate) 3.40 lb
Miscellaneous
Platform Supported PC
