Logic Controls

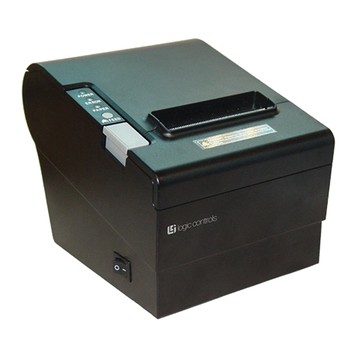

Imprimantes de Receipts Logic Controls LR2000U

UGS :

LR2000U

Receipt Printer, Logic Controls LR2000, A thermal receipt printer capable of printing up to 9.8 inches per second. Features USB connectivity, ESC/POS emulation, and durability up to 15 million lines.
Description
ico-plus ico-minus

The Logic Controls LR2000 Thermal Printer is a high-speed, reliable receipt printer built for both retail and hospitality environments. Featuring direct thermal printing technology, it delivers sharp, clear receipts at up to 250 mm per second, ensuring quick transactions and efficient service. With support for USB, RS-232, and optional Ethernet connectivity, it integrates seamlessly into a wide range of POS systems. Its compact, durable design is made for long-term use, with a print head life rated at 15 million lines and an auto cutter rated for 1 million cuts. Compatible with ESC/POS commands and backed by a 3-year warranty, the LR2000 provides the performance and dependability businesses need.


Key Features

  • High-speed thermal printing at up to 250 mm/sec

  • Flexible connectivity: USB, RS-232, and optional Ethernet

  • Durable design with auto cutter rated for 1 million cuts

  • Print head life rated for 15 million lines

  • Compact size, ideal for retail and hospitality counters

  • ESC/POS command compatible

  • 3-Year Warranty


Specifications
Printing: Direct thermal line printing, 180 x 180 dpi resolution, 72 mm print width
Speed: Up to 250 mm/sec
Print Life: Print head: 15 million lines (approx. 100 km), Auto cutter: 1 million cuts, MCBF: 60 million lines
Interfaces: USB Type B, RS-232 Serial, optional RJ45 Ethernet
Cash Drawer Port: RJ11 connector
Dimensions: 5.7" (W) x 7.7" (D) x 5.8" (H)
Weight: 3.4 lbs (1.5 kg)
Power: External AC 100–240 V, 24 V DC / 2.5 A
Environment: Operating 0–50°C (32–122°F), 10–90% RH non-condensing
Certifications: CE, FCC, UKCA, RoHS

Caractéristiques principales

  • Connexion: Serial, USB

  • Technologie d'impression: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Receipt Print
Maximum Print Resolution (dpi) 180 x 180
Maximum Print Width 2.80"
Barcode Symbology Supported
  • EAN-13
  • EAN-8
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • ITF
  • Codabar
  • UPC-A
  • UPC-E
  • ISBN
  • MSI
  • PDF-417
Application/Usage
  • POS System
  • Kitchen
  • Industrial
  • Retail
  • Hospitality
Features
  • Heat Resistant
  • Water Resistant
  • Versatile
  • Durable
  • Easy to Use
  • Programmable Buzzer
  • Cash Drawer Port
Mean Cycles Between Failures (MCBF) 60000000
Print Head Life 15000000
Connectivity Technology Wired
Optional Connectivity Ethernet
Fonts Included
  • ASCII Font A: 12×24
  • ASCII Font A: 9×24
Print Technology Direct Thermal
Interfaces/Ports
Serial Port Yes
USB Yes
Cutter
Cutter Yes
Cutting Method Automatic
Cutter Life 1000000 Cuts
Media Types & Handling
Media Type Receipt
Media Sensor
  • Paper End Sensor
  • Top Cover Sensor
Fonts & Emulation
Language Emulation ESC/POS
Power Description
Power Source AC
Frequency
  • 50 Hz
  • 60 Hz
Environmental Conditions
Operating Temperature 32°F (0°C) - 113°F (45°C)
Operating Relative Humidity 20% - 90%
Storage Relative Humidity 10% - 90%
Physical Characteristics
Height 7.7"
Width 5.7"
Depth 5.8"
Weight (Approximate) 3.40 lb
