Zebra

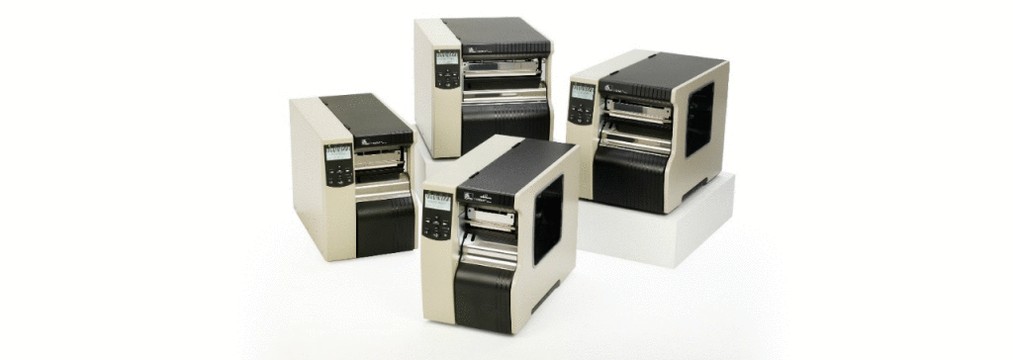

Imprimantes Zebra 220-8K1-00000

UGS :

220-8K1-00000

Le Zebra 220-8K1-00000 est un direct thermal/thermal transfer printer Zebra d'origine pour la série Xi4. Conçu selon les spécifications OEM Zebra pour un fonctionnement fiable et conforme à la garantie.
Description
ico-plus ico-minus
Introducing Zebra's built-to-last 220Xi4 printers that give you reliable performance over the long run to minimize maintenance needs and total cost of ownership. With one printer model and Zebra's wide range of label materials and sizes, you can address a variety of printing applications, reducing the need to purchase different printers for every specific labeling application. The 220Xi4 is renowned for its incredible strength, consistently outstanding print quality, fast print speed, long life and unparalled reliability in demanding applications. The 220Xi4 is designed for printing of labels up to 8" wide for chemical drum or other wide label applications. The wireless connectivity option frees you from paying for recabling with every physical reconfiguration of your operations.

Caractéristiques principales

  • Format de l'équipement: Desktop

  • Connexion: Serial, USB, Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 10 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 8.50"
Barcode Symbology Supported
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • ISBT-128
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • Micro PDF
  • QR Code
  • RSS
  • GS1 DataBar
  • TLC 39
  • Industrial 2 of 5 w
Real Time Clock Yes
Application/Usage Desktop
Features
  • Clear Media Side Door
  • Auto-calibration
  • Mirror Printing
  • Element Energy Equalizer
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 16 MB
Memory Technology SDRAM
Flash Memory 64 MB
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11g
Display & Graphics
Display Screen Yes
Display Screen Type LCD
Media Types & Handling
Media Type
  • Black Mark
  • Continuous Label
  • Die-cut Label
  • Fanfold
  • Roll Fed
Media Sensor
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness 12 mil
Maximum Roll Diameter 8"
Maximum Label Width 8.80"
Maximum Label Length 12.50 ft
Label Core Size 3"
Ribbon Core Size 1"
Fonts & Emulation
Language Emulation
  • XML
  • ZPL II
Power Description
Power Source AC Supply
Input Voltage
  • 120 V AC
  • 230 V AC
Physical Characteristics
Height 15.5"
Width 15.8"
Depth 20.4"
Weight (Approximate) 72 lb
Miscellaneous
Package Contents
  • 220Xi4 Label Printer
  • Software & Driver CD
  • User's Guide
  • North American Edition, 120 VAC Power Cord
  • Radio Card
Cables Included AC
Platform Supported PC
Certifications & Standards
  • Unicode
  • BSMI
  • cTUVus
  • CCC
  • CE
  • C-Tick
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1
  • EN60950
  • KCC
  • NOM
  • S Mark
  • STB
  • UkrSEPRO
  • VCCI
  • ZIK
Country of Origin China
Environmentally Friendly Yes
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Document produit mod-220xi4-zebra-label-printer-datasheet.pdf 220-8K1-00000 Document produit mod-220xi4-zebra-label-printer-user-manual.pdf 220-8K1-00000 Document produit zebra-220xi4-series-printers.pdf 220-8K1-00000 Document produit 220xi4.pdf MOD-220XI4
