Toshiba

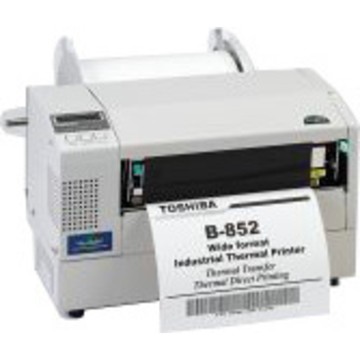

Imprimantes d'étiquettes Toshiba B-852-TS22-QP-R

UGS :

B-852-TS22-QP-R

Industrial thermal printer, 8" wide, 300dpi, 4"/sec, USB interface
Description
ico-plus ico-minus

The Toshiba B-852 Barcode Label Printer is a top choice for versatile and high-quality printing needs. Ideal for various applications including office, manufacturing, and retail environments, this compact thermal printer offers a maximum printing width of 216.8 mm (8.5 inches). With advanced features like a user-friendly interface, customizable options, and a durable metal construction, the B-852 delivers optimal performance and reliability. Whether creating simple shipping labels or detailed durable resin labels, this printer stands out in both functionality and versatility.


Key Features
  • High Resolution: 300 DPI print head for sharp and clear labels.
  • Fast Printing: Speeds up to 4 inches per second.
  • Flexible Media Handling: Supports media widths from 3.9 to 9.5 inches.
  • User-Friendly Design: Easy ribbon and media loading, low maintenance.
  • Network Integration: Various options including PCMCIA for enhanced connectivity.

Specifications
  • Print Method: Direct thermal/thermal transfer
  • Print Head Resolution: 300 DPI
  • Print Speed: 2 inches/s, 4 inches/s
  • Media Alignment: Center Loaded
  • Interface: RS-232C, Parallel (Centronics), Optional PCL5
  • Operating Temperature: 5 to 40 °C
  • Dimensions: 243 mm (H) x 385 mm (W) x 7.2 mm (D)
  • Weight: 15.6 Kg

Caractéristiques principales

  • Format de l'équipement: Desktop

  • Connexion: USB, Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 4 in/s
Maximum Print Resolution (dpi) 300
Maximum Print Width 8.54"
Barcode Symbology Supported
  • UPC
  • EAN
  • JAN
  • Code 39
  • Code 93
  • Code 128
  • EAN 128
  • NW-7
  • MSI
  • Industrial 2 of 5
  • ITF
  • POSTNET
  • RM4SCC
  • KIX
  • RSS-14
  • Data Matrix
  • PDF-417
  • Maxi Code
  • QR Code
  • Micro PDF-417
  • CP
Application/Usage Desktop
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 16 MB
Memory Technology DRAM
Flash Memory 16 MB
Interfaces/Ports
Parallel Port Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Media Types & Handling
Media Type
  • Continuous Label
  • Adhesive Label
  • Tag
  • Plastic Label
  • Fabric Label
Media Thickness 7.09 mil
Maximum Roll Diameter 9.06"
Maximum Label Width 9.53"
Maximum Label Length 32.32"
Label Core Size 3"
Ribbon Core Size 1.02"
Physical Characteristics
Height 9.6"
Width 15.2"
Depth 7.1"
Weight (Approximate) 34.39 lb
Miscellaneous
Platform Supported PC
Documents
ico-plus ico-minus
Document produit mod-b852-toshiba-label-printer-datasheet.pdf B-852-TS22-QP-R Document produit mod-b852-toshiba-label-printer-manual-multilanguage.pdf B-852-TS22-QP-R Document produit toshiba-b-852-r.pdf B-852-TS22-QP-R Document produit b-852r.pdf MOD-B852
