Star Micronics

Imprimantes d'étiquettes Star Micronics 39474710

UGS :

39474710

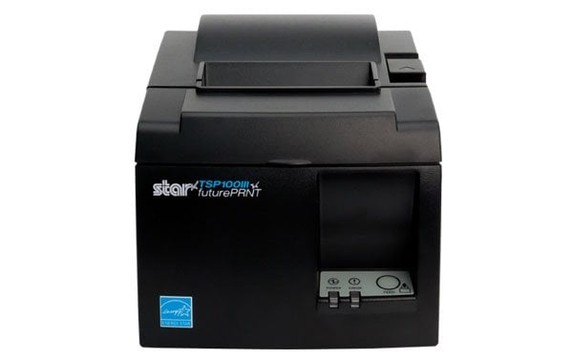

Star Micronics, Model: TSP143IIIBI2, TSP100III, US version, Thermal printer, Cutter, Bluetooth, gray. Includes: Internal Power Supply. Compatible with: iOS, Android, Windows
Description
ico-plus ico-minus

The Star TSP143 Receipt Printer is your all-in-one solution for efficient, high-quality printing in retail or hospitality settings. Featuring an internal universal power supply and a straightforward drop-in paper loading system, this printer is designed for easy setup and reliable performance. With auto-install drivers for various operating systems, you'll be up and running in no time. Enhance your customer experience with fast print speeds and customizable receipt design options included in the package.


Key Features
  • Fully Loaded Package: Everything you need is included - 5 ft USB cable, power cord, and roll of paper.
  • Auto Install Drivers: Hassle-free installation on Windows, Mac, and Linux.
  • Free Software Solutions: Modify receipts without coding skills, including logos and cropping options.
  • Internal Power Supply: No need for external power bricks.
  • Fast Print Speed: 25 RPM for both printer fonts and full graphics.

Specifications
  • Print Speed: 25 RPM*
  • Paper Width: 58 or 80 mm (3.15")
  • Print Width: 76 mm (max)
  • Resolution: 203 dpi
  • Reliability: 60 million lines MCBF, 1 million cuts
  • Drivers: Windows 9x, 2k, XP, OPOS, JPOS, Linux, MAC OSX
  • Paper Loading: Drop In
  • Power Requirements: 120 to 220V, Internal Power Supply

Caractéristiques principales

  • Format de l'équipement: Desktop

  • Système de Point de Vente: Oui

  • Couleur de l'étui: Grey

  • Connexion: Bluetooth

  • Technologie d'impression: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 9.84 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 2.83"
Barcode Symbology Supported
  • PDF417
  • Maxi Code
Application/Usage Desktop
Mean Cycles Between Failures (MCBF) 60000000
Print Technology Direct Thermal
Network & Communication
Bluetooth Yes
Cutter
Cutter Yes
Cutting Method Automatic
Cutter Type Guillotine
Media Types & Handling
Media Type Receipt
Media Sensor Cover Open Sensor
Maximum Roll Diameter 3.27"
Maximum Label Width 3.15"
Power Description
Power Source AC Supply
Environmental Conditions
Operating Temperature 41°F (5°C) - 113°F (45°C)
Operating Relative Humidity 10% - 90%
Storage Temperature -4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Form Factor Wall Mount
Color Family Gray
Product Color Gray
Height 5.2"
Width 5.6"
Depth 8"
Weight (Approximate) 3.37 lb
Miscellaneous
Package Contents
  • TSP143IIIW WT US Receipt Printer
  • Wall Mount Bracket
  • Installation CD with Drivers and futurePRNT
  • 58mm Paper Guide
  • 6ft Interface Cable
  • 6ft Power Cable
  • Power Switch Cover
  • Easy Setup Guide
Compatibility
  • iOS
  • Android
  • PC
Platform Supported
  • PC
  • iOS
  • Android
Certifications & Standards
  • UL
  • C-UL
  • TuV
  • FCC
  • VCCI
  • EN55022
  • CE
Energy Star Yes
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Document produit tsp143iii-2021.pdf 39474710 Document produit tsp143iii-2023.pdf MOD-TSP143III
