SATO

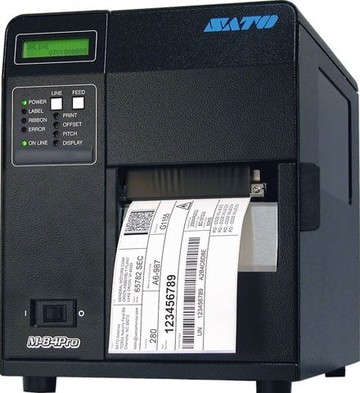

Imprimantes d'étiquettes SATO WM8420021

UGS :

WM8420021

The M84Pro Series - the rugged industrial generation of high performance printer with high resolution capabilities. The M84Pro offers user configurable print resolutions of 203, 305, and 609 dpi. The M84Pro's powerful electronics provide high throughput and print speeds of 10, 8 and 6 ips at 203, 305 and 609 dpi respectively
Description
ico-plus ico-minus

The SATO M84Pro(2) Barcode Label Printer is engineered for industrial applications, delivering exceptional performance and durability. Designed with a robust metal construction, this heavy-duty thermal printer supports resolutions of 203, 305, or 609 dpi, making it versatile for various labeling needs. With print speeds of up to 10 inches per second, it seamlessly handles compliance labeling, PCB marking, retail labeling, and asset tracking across various industries, including aerospace, automotive, and food services.


Key Features:
  • Heavy-Duty Metal Industrial Construction
  • User Configurable Print Resolution (203, 305, or 609 dpi)
  • High Print Speed of up to 10 ips
  • 18 MB On-Board Memory
  • Compatible with any Windows® application
  • Proven Rugged Reliable Design

Specifications:
  • Model: M84Pro(2)
  • Printing Method: Thermal Transfer/Direct Thermal
  • Print Resolution: 203 dpi (8 dots/mm)
  • Print Speed: 10 ips (254 mm/sec)
  • Max Width: 49.2" (1249 mm)
  • Media Types: Roll-fed, fanfold, die-cut, continuous
  • Memory: 16 MB RAM, 2 MB Flash
  • Dimensions: 10.4" W x 17.1" D x 13.4" H
  • Weight: 39.7 lbs (18 kg)

Caractéristiques principales

  • Format de l'équipement: Desktop

  • Robuste: Industrial

  • Connexion: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 10 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 4.10"
Barcode Symbology Supported
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Code 39
  • Code 93
  • Code 128
  • Codabar
  • MSI
  • Bookland
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 25
  • POSTNET
  • GS1-128
  • GS1 DataBar
  • PDF-417
  • Micro PDF-417
  • Truncated PDF417
  • Maxi Code
  • Data Matrix
  • QR Code
Application/Usage Desktop
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 16 MB
Flash Memory 2 MB
Interfaces/Ports
USB Yes
Media Types & Handling
Media Type
  • Roll Fed
  • Continuous Label
  • Fanfold
  • Die-cut Label
  • Synthetic Media
  • Tag Stock
  • Black Mark
  • Gap
  • Notch
Media Sensor
  • Adjustable Media Sensor
  • Reflective Media Sensor
Maximum Label Width 5"
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height 13.4"
Width 10.4"
Depth 17.1"
Weight (Approximate) 39.68 lb
Miscellaneous
Platform Supported PC
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Document produit m84pro.pdf WM8420021 Document produit m84pro.pdf MOD-M84PRO
