Datamax

Imprimantes d'étiquettes Datamax I16-00-4P000007

UGS :

I16-00-4P000007

Barcode Label Printers, Honeywell, I-4606E-4, Thermal Transfer, 600 dpi, Parallel, Serial, USB
Description
ico-plus ico-minus

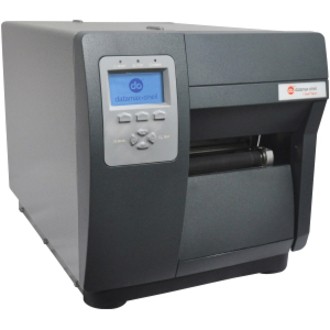

The Datamax-O'Neil I-4606 Barcode Label Printer is engineered for high-performance industrial settings, making it the go-to choice for various labeling applications. With advanced features like a built-in **OPTIMedia** system for automatic adjustments, this mid-range printer ensures optimal quality while consuming **25% less power** than competitors. Its rugged design, excellent communication options, and easy maintenance make the I-Class Mark II a reliable solution for shipping, asset tracking, and product identification.
Key Features
  • Automatic setup: OPTIMedia enhances print quality with optimal heat and speed settings.
  • Power efficiency: 25% lower power consumption than similar models.
  • Durable construction: Rugged design with a die-cast aluminum frame.
  • Easy maintenance: Quick printhead and platen roller changes in under 5 minutes.
  • Versatile connectivity: Multiple communication ports including USB, Ethernet, and W-LAN.
  • Multi-language support: User-friendly menu available in five languages.

Specifications
  • Print Width: 4.16" (105.7 mm) max
  • Print Length Range: 0.25" - 99" (6.35 - 2514.6 mm)
  • Print Speed: 12 IPS (304 mm/s)
  • Resolution: 203 DPI (8 dots/mm)
  • Memory: 32MB SDRAM / 64MB Flash
  • Weight: 45 lbs (20.5 kg)
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Media Type: Roll-fed, die-cut, or continuous labels

Caractéristiques principales

  • Format de l'équipement: Desktop

  • Robuste: Industrial

  • Connexion: Serial, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 6 in/s
Maximum Print Resolution (dpi) 600
Maximum Print Width 4.16"
Barcode Symbology Supported
  • Code 3 of 5
  • UPC-A
  • UPC-E
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • POSTNET
  • UCC 128
  • EAN 128
  • Telepen
  • Planet Code
  • FIM
  • USPS-4 State
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Codablock
  • Code 16K
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • GS1 DataBar
Application/Usage Desktop
Features
  • Mirror Printing
  • Vertical Printing
  • Horizontal Printing
  • Media Supply Hub
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 32 MB
Memory Technology SDRAM
Flash Memory 64 MB
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Yes
Display & Graphics
Display Screen Yes
Display Screen Type LCD
Media Types & Handling
Media Type
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Continuous Tag
  • Black Mark
  • Ticket Stock
  • Label
Media Sensor
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness 10 mil
Maximum Roll Diameter 8"
Maximum Label Width 4.65"
Label Core Size 3"
Ribbon Core Size 1"
Fonts & Emulation
Language Emulation
  • DPL
  • PLI
  • PLZ
Power Description
Power Source AC Supply
Input Voltage
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height 12.7"
Width 12.6"
Depth 18.6"
Weight (Approximate) 45 lb
Miscellaneous
Package Contents
  • I-Class Mark II I-4606E Label Printer
  • Software CD
Platform Supported PC
Certifications & Standards
  • Unicode
  • UTF8
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Document produit Logiscenter_Datamax-O'Neil_I-4606.pdf MOD-I-4606
