CognitiveTPG

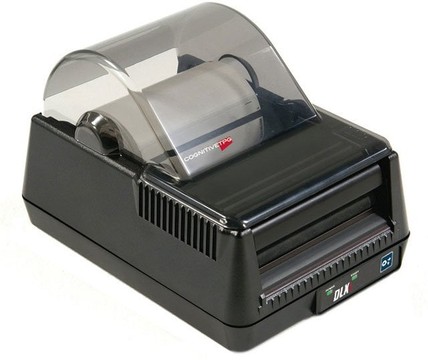

Imprimantes d'étiquettes CognitiveTPG DBD42-2085-G1E

UGS :

DBD42-2085-G1E

CognitiveTPG DLXi Direct Thermal Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - Peel Facility - 2.20" Print Width - 5 in/s Mono - 203 dpi - Black Bar, Notch, Gap - 2.40" Label Width
Description
ico-plus ico-minus

The **CognitiveTPG DLXi Barcode Label Printer** is engineered for exceptional durability and high-performance, making it an ideal choice for various industrial applications. With a robust metal construction and superior communication interfaces, the DLXi delivers fast print speeds of up to 5 inches per second. Designed to excel in challenging environments, this printer ensures a seamless transition from legacy models while maintaining top-notch reliability and quality for all your labeling needs.


Key features:

  • Durable Metal Frame: Built to withstand rigorous conditions.
  • Versatile Interfaces: Includes USB-A Host, Serial, Parallel, and Ethernet connections.
  • Fast Print Speed: Up to 5 inches per second (127 mm/sec).
  • Comprehensive Programming Support: Compatible with CPL, ECPL, and ZcPL languages.
  • Standard 2-Year Warranty: Assurance of quality and reliability.

Specifications:

  • Print Method: Direct Thermal or Thermal Transfer
  • Max Print Width: 4.1" (104 mm)
  • Max Print Length: 322" (8179 mm)
  • Max Print Speed: 5 ips (127 mm/sec)
  • Resolution: 203 dpi (8 dpmm)
  • Media Width: 2" to 4.25" (50 mm - 108 mm)
  • Roll Diameter: 4.7" (119 mm)
  • Memory: RAM- 16 MB, Flash - 8 MB
  • Operating Temperature: 41°F to 104°F (5°C to 40°C)
  • Weight: 3.1 lbs. (1.41 kg) / 3.9 lbs. (1.77 kg)
  • Warranty: 24 months from the date of purchase

Caractéristiques principales

  • Format de l'équipement: Desktop

  • Robuste: Industrial

  • Connexion: Serial, USB, Ethernet

  • Technologie d'impression: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 5 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 2.20"
Barcode Symbology Supported
  • Add2
  • Add5
  • Codabar
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • D2 of 5
  • I-2/5
  • S2 of 5
  • EAN-8
  • EAN-8+
  • EAN-13
  • EAN-13+
  • EAN 128
  • Maxi Code
  • MSI1
  • MSI
  • Plessey
  • POSTNET
  • UPC-A
  • UPC-A+
  • UCP-E
  • UPC-E1
  • Data Matrix
  • Aztec Code
  • QR Code
  • RSS
  • PDF-417
Peel Facility Yes
Application/Usage Desktop
Print Technology Direct Thermal
Memory
Standard Memory 16 MB
Memory Technology SDRAM
Flash Memory 8 MB
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Media Types & Handling
Media Type
  • Black Bar
  • Notch
  • Gap
Maximum Roll Diameter 4.70"
Maximum Label Width 2.40"
Fonts & Emulation
Language Emulation
  • CPL
  • ZcPL
  • EcPL
Power Description
Power Source Power Adapter
Input Voltage 24 V DC
Physical Characteristics
Height 6.1"
Width 4.7"
Depth 9.4"
Weight (Approximate) 3.10 lb
Miscellaneous
Package Contents
  • DLXi Label Printer
  • Quick Start Guide
  • USB Cable
  • Power Supply
  • Power Cord
  • Special Serial Cable
Cables Included USB
Power Adapter Included Yes
Platform Supported PC
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Document produit dlxi.pdf DBD42-2085-G1E Document produit dlxi.pdf MOD-COGNITIVETPG-DLXI
