Bixolon

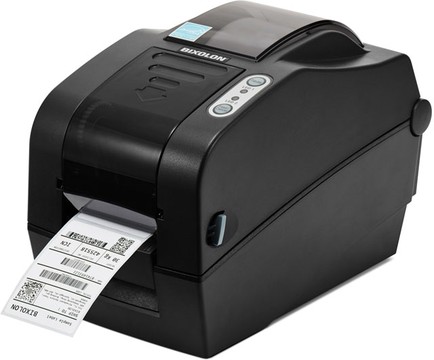

Imprimantes d'étiquettes Bixolon SLP-TX223CG

UGS :

SLP-TX223CG

label printer, thermal transfer, resolution: 12 dots/mm (300 dpi), media width (max.): 60 mm, print width (max.): 56mm, roll diameter (max.): 130mm, speed (max.): 100 mm/s, USB (type B), RS232 (9 pin), emulation: EPL, ZPLII, SLCS, RAM: 64 MB, Flash: 128 MB, cutter, Black Mark Sensor, Gap Sensor, incl.: power supply unit, power cable, colour: dark grey
Description
ico-plus ico-minus

The Bixolon SLP-TX220 Barcode Label Printer is your perfect solution for high-quality label printing. Designed for a variety of industries including retail, healthcare, and logistics, it offers premium performance in a compact desktop design. With fast printing speeds of up to 6 inches per second and smart media detection, it simplifies tasks while ensuring compatibility with all leading programming languages. The SLP-TX220 also features **built-in Bluetooth** technology for seamless mobile device compatibility.


Key Features
  • Print Method: Thermal Transfer, Direct Thermal
  • Print Speed: Up to 6 ips (152 mm/sec)
  • Mobile Device Compatible: Built-in Bluetooth with MFI IAP2 certification
  • User-Friendly Design: Easy paper loading, options for Peeler and Auto-cutter
  • Smart Media Detection: Automatic paper detection for various media types

Specifications
  • Printer Specifications:
    • Print Resolution: 203 dpi
    • Print Width: Up to 54 mm
    • Memory: 64MB SDRAM, 128MB FlashROM
  • Media Characteristics:
    • Media Type: Gap, Black Mark, Continuous
    • Media Width: 15~60 mm
    • Media Thickness: 0.06 - 0.20 mm
  • Physical Characteristics:
    • Dimensions: 144 x 250 x 173 mm
    • Weight: 1.71 kg
    • Power: EnergyStar Certified

Caractéristiques principales

  • Format de l'équipement: Desktop

  • Connexion: Serial, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 3.94 in/s
Maximum Print Resolution (dpi) 300
Maximum Print Length 78.74"
Maximum Print Width 2.24"
Application/Usage Desktop
Mobile Device Printing Yes
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 64 MB
Interfaces/Ports
Serial Port Yes
USB Yes
Media Types & Handling
Media Type
  • Label
  • Gap
  • Black Mark
  • Notch
  • Continuous Label
  • Fanfold
Maximum Roll Diameter 5.12"
Maximum Label Width 2.36"
Power Description
Power Source AC Supply
Physical Characteristics
Height 6.8"
Width 5.7"
Depth 9.9"
Weight (Approximate) 3.77 lb
Miscellaneous
Platform Supported
  • PC
  • Mac
  • iOS
  • Android
Energy Star Yes
Documents
ico-plus ico-minus
Document produit slp-tx220.pdf SLP-TX223CG Document produit mod-slp-tx223-bixolon-label-printer-datasheet.pdf MOD-SLP-TX223 Document produit mod-slp-tx223-bixolon-label-printer-user-manual.pdf MOD-SLP-TX223
