Avery-Dennison

Imprimantes d'étiquettes Avery-Dennison M09416IEXL

UGS :

M09416IEXL

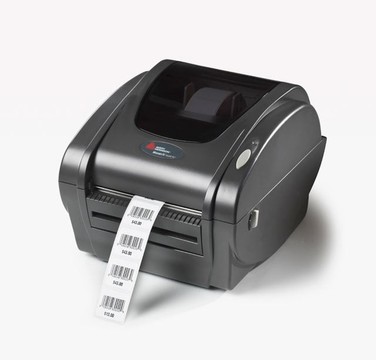

Monarch 9416 XL Direct Thermal Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - Peel Facility - 4.25" Print Width - 5 in/s Mono - 203 dpi - Label, Receipt, Tag, Continuous Form, Die-cut Label, Black Mark, Roll Fed, Fanfold - 4.41" Label Width - 10" Label Length
Description
ico-plus ico-minus
The Avery Dennison® Monarch® 9416 XL Barcode Label Printer is designed to maximize productivity in tight spaces, making it an ideal choice for retail back rooms and shipping docks. With advanced capabilities and a compact design, this printer accommodates a variety of labeling needs, including shipping labels, small signs, and receipts. The robust 32-bit RISC processor enables print speeds of up to 4 inches per second, while its advanced memory capacity ensures efficient and rapid print jobs, elevating your operational performance.

Key Features
  • Compact Design: Fits into small spaces for versatile use.
  • High-Speed Printing: Prints up to 4 ips to increase productivity.
  • Flexible Supply Options: Compatible with various label types.
  • Connectivity Options: Ethernet, USB, and serial connections available.
  • Multiple Printing Resolutions: Choose between 203 dpi and 300 dpi.

Specifications
  • Model Name: 9416 XL
  • Processor: 32-bit RISC Processor
  • Memory: 4 Mb Flash, 8 Mb SDRAM
  • Media Width: 0.78" - 4.4" (20-112mm)
  • Media Thickness: 2.36 - 6.3 mill
  • Core Diameter: 1" - 3" (25.4mm - 76.2mm)
  • Warranty: 1 year parts and labor
  • Barcodes Supported: UPCA, EAN13, Code 39, and more

Caractéristiques principales

  • Format de l'équipement: Desktop

  • Connexion: Serial, USB, Ethernet

  • Technologie d'impression: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 5 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 4.25"
Barcode Symbology Supported
  • UPC-A+5
  • UPC-A+2
  • UPC-A
  • UPC-E
  • UPC-E+2
  • UPC-E+5
  • EAN-8
  • EAN 128
  • Code 39
  • Codabar
  • Code 128 UCC
  • Code 93
  • Code 11
  • MSI
  • PDF-417
  • Micro PDF-417
  • POSTNET
  • Maxi Code
  • Plessey
  • I-2/5
  • EAN-13+2
  • EAN-13+5
  • EAN-8+5
  • EAN-8+2
  • Code 16K
Peel Facility Yes
Application/Usage Desktop
Print Technology Direct Thermal
Memory
Standard Memory 8 MB
Flash Memory 2 MB
Memory Card Slot Yes
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Ethernet
Display & Graphics
Display Screen Yes
Display Screen Type LED
Media Types & Handling
Media Type
  • Label
  • Receipt
  • Tag
  • Continuous Form
  • Die-cut Label
  • Black Mark
  • Roll Fed
  • Fanfold
Media Handling 1 x Feeder - 1 Roll Capacity
Media Thickness 4250 mil
Maximum Roll Diameter 1.50"
Maximum Label Width 4.41"
Maximum Label Length 10"
Label Core Size 1"
Fonts & Emulation
Language Emulation
  • EPL II
  • MPCLII
Power Description
Power Source AC Supply
Input Voltage 110 V AC
Physical Characteristics
Height 6.3"
Width 8.3"
Depth 9.4"
Weight (Approximate) 4.10 lb
Miscellaneous
Package Contents
  • 9416 XL Desktop Printer
  • Software CD
Platform Supported PC
Warranty
Limited Warranty 1 Year
