Epson

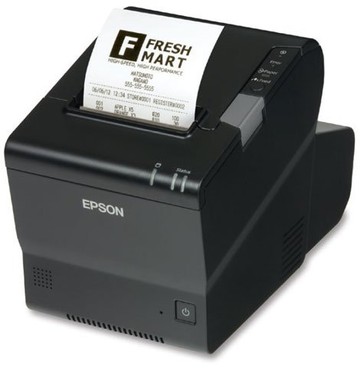

Imprimantes de Receipts Epson C31CC74742

UGS :

C31CC74742

Epson delivers the next generation of POS technology with OmniLink smart POS solutions. Small and compact, they are designed to meet the needs of today's retailers from mobile printing and cloud-based services to thin client and web-based Point-of-Sale (POS) systems. Best of all, they offer the quality and reliability that Epson is known for
Description
ico-plus ico-minus

The Epson TM-T88V Receipt Printer is a standout choice for retail and food service environments, combining speed, reliability, and modern printing capabilities. With a lightning-fast print speed of up to 300mm per second, this printer ensures efficient customer service while delivering crisp, high-quality graphics and text. Its user-friendly design includes drop-in paper loading and an autocutter, making it easy to maintain and operate. Backed by the industry-leading service and a four-year limited warranty, the TM-T88V is your solution for dependable, high-volume receipt printing.


Key Features:
  • Speed: Prints at up to 300mm/second for both text and graphics.
  • Reliability: MCBF of 70 million lines and autocutter life of 2 million cuts.
  • Grayscale Printing: Industry-first true grayscale printing for detailed graphics.
  • User-friendly: Features drop-in paper loading, autocutter, and status LEDs.
  • Energy Efficient: ENERGY STAR qualified with low power consumption.

Specifications:
  • Print Method: Thermal line printing
  • Interfaces: Built-in USB + one configurable interface (e.g., serial, parallel, Ethernet)
  • Print Speed: 300mm/s for graphics and text
  • Paper Dimensions: 80mm roll, 3.13" x 3.27" diameter; 58mm roll, 2.26" x 3.27" diameter
  • Power: 24 VDC ± 7%, Operating: approx. 1.8 A
  • Dimensions: 5.71" (W) x 7.68" (D) x 5.83" (H)
  • Weight: 3.5 lb (1.6 kg)
  • Warranty: Four-year limited warranty

Caractéristiques principales

  • Format de l'équipement: Desktop

  • Système de Point de Vente: Oui

  • Couleur de l'étui: Black

  • Connexion: USB, Bluetooth

  • Technologie d'impression: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 11.81 in/s
Maximum Print Resolution (dpi) 180 x 180
Maximum Print Width 2.83"
Barcode Symbology Supported
  • UPC-A
  • UPC-E
  • Code 128
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • ITF
  • Codabar
  • PDF-417
  • QR Code
  • Maxi Code
  • Composite Symbology
  • GS1-128
  • GS1 DataBar Omnidirectional
  • GS1 DataBar Truncated
  • GS1 DataBar Limited
  • GS1 DataBar Expanded
Application/Usage Desktop
Print Technology Direct Thermal
Memory
Standard Memory 4 KB
Interfaces/Ports
USB Yes
Network & Communication
Bluetooth Yes
Media Types & Handling
Media Type
  • Roll Paper
  • Receipt
Media Thickness 3.15 mil
Maximum Roll Diameter 3.27"
Maximum Label Width 3.15"
Power Description
Power Source Power Adapter
Input Voltage 24 V DC
Physical Characteristics
Color Family Black
Product Color Black
Height 5.8"
Width 5.7"
Depth 7.7"
Weight (Approximate) 3.50 lb
Miscellaneous
Platform Supported
  • Mac
  • PC
Certifications & Standards
  • FCC
  • ICES-003 Class A
  • UL1950
  • CSA C22.2 No. 950
  • 2004
  • 108
  • EC
  • EN55022 Class A
  • EN55024
  • IEC61000-4-2
  • IEC61000-4-3
  • IEC61000-4-4
  • IEC61000-4-5
  • IEC61000-4-6
  • IEC61000-4-11
  • TUV (EN60950-1)
Energy Star Yes
Country of Origin China
Environmentally Friendly Yes
Documents
ico-plus ico-minus
Document produit tm-t88v-dt.pdf C31CC74742 Document produit mod-tm-t88v-epson-thermal-printers-datasheet.pdf MOD-TM-T88V Document produit mod-tm-t88v-epson-thermal-printers-user-manual.pdf MOD-TM-T88V
