Computer Speakers Bogen WBS810T725
WBS810T725
Sélectionner un modèle

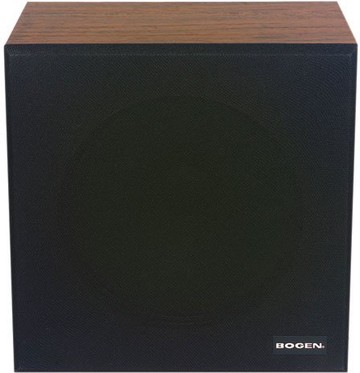

The Bogen WBS86T725V Public Address Equipment is an ideal choice for those seeking exceptional sound quality in wall-mounted applications. Engineered with 8" cone loudspeakers, this durable unit delivers powerful audio with a frequency response of 50Hz to 12kHz. Featuring optional transformers and versatile installation options, including wall baffles and ceiling grilles, the WBS86T725V ensures hassle-free integration into various environments. Its robust construction and user-friendly design make it perfect for everything from public spaces to commercial settings.
Key Features
- High-quality, direct radiator speakers deliver clear audio performance.
- Power handling options of 7W and 15W to suit different applications.
- Quick attachment provision for transformers enables easy installation.
- Available as factory-assembled options, including transformer and terminal strip.
Specifications
- Speaker Model: WBS86T725V
- Cone Diameter: 8 inches
- Magnet Weight: 6 oz. (S86), 10 oz. (S810)
- Voice Coil Impedance: 8 ohms
- Frequency Response: 50Hz to 12kHz (S86), 70Hz to 15kHz (S810)
- Axial Sensitivity: 95dB (S86), 96dB (S810)
- Power Handling Capacity: 7W (S86), 15W (S810)
- Shipping Weight: 25 lbs. (S86), 34 lbs. (S810)
- Mounting Options: Wall Baffle, Ceiling Grille
| Technical Information | |
|---|---|
| RMS Output Power | 15 W |
| Minimum Frequency Response | 70 Hz |
| Maximum Frequency Response | 15 kHz |
| Impedance | 8 Ohm |
| Sensitivity | 96 dB |
| Physical Characteristics | |
|---|---|
| Product Color | Walnut |
| Product Material | Ceramic |
| Form Factor | Wall Mountable |
| Height | 9.5" |
| Width | 9.5" |
| Depth | 5.25" |
| Warranty | |
|---|---|
| Limited Warranty | 2 Year |
