Zebra

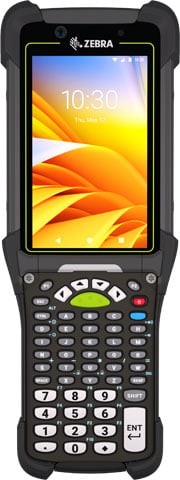

Terminaux Portables Zebra MC9401-0G1R6CNS-NA

UGS :

MC9401-0G1R6CNS-NA

The MC9401-0G1R6CNS-NA pairs 6 GB RAM and 128 GB flash storage with the SE58 Extended Range scan engine, reaching barcodes out to 100.07 ft on both 1D and 2D symbologies from a gun-form handheld weighing 1.64 lb with battery. IEEE 802.11ax Wi-Fi 6E, Bluetooth 5.3 BLE, NFC, and multi-SIM 5G/4G/LTE Advanced cellular cover wireless connectivity, while a 2.40 GHz octa-core QCM4490 processor drives Android with a supported upgrade path to Android 17. The 4.3-inch WVGA touchscreen resolves at 800 x 480, backed by a 43-key numeric keypad, an 8-megapixel front camera, and a 16-megapixel rear camera. A removable 7000 mAh Li-Ion battery powers the unit across an operating range of -4 degrees F (-20 degrees C) to 122 degrees F (50 degrees C), and drop performance exceeds MIL-STD-810H at 12 ft to concrete. IP65/IP68 sealing, non-incendive certification, and Corning Gorilla Glass suit warehouse, manufacturing, port, and yard deployments; a one-year limited warranty and RoHS compliance are included.
Les prix n’ont pas pu être mis à jour.
Description
ico-plus ico-minus
Zebra MC9400

Le Zebra MC9400 correspond a une famille d informatique mobile. Cette entree doit etre traitee comme une reference de modele ou de famille, et non comme une configuration commerciale totalement specifique. Lorsque les specifications exactes sont importantes, il est preferable de confirmer la reference finale, la variante regionale, la connectivite, le format du consommable ou les accessoires inclus a l aide de la documentation officielle Zebra avant publication.

Pourquoi cette description est plus sure
  • Precision au niveau famille - evite d affirmer du materiel, du logiciel, des dimensions ou des accessoires non confirmes pour cette reference MOD
  • Texte plus sur pour publication - adapte lorsqu un enregistrement represente une famille, une plateforme ou un modele marketing plutot qu une configuration complete
  • Approche orientee verification - aide a eviter la publication de caracteristiques deduites de maniere trop aggressive

Note recommandee pour publication
Utilisez la reference commerciale finale Zebra pour les details de configuration comme la resolution, la memoire, la connectivite, le moteur de lecture, les dimensions du media, le niveau de licence ou la quantite par emballage.

Caractéristiques principales

  • Système: Android

  • Robuste: Industrial

  • Format de l'équipement: Gun Grip

  • Plage: Extended Range

  • Connexion: USB, Bluetooth

Spécifications techniques
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE58
Image Sensor Type Imager
Light Source Laser
Scanner Range Long Range
Scanning Distance 100.07 ft
Google Mobile Services (GMS) Yes
Sensor Type
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • eCompass
  • Accelerometer
  • Gyroscope
Multi-SIM Supported Yes
SIM Size Supported Nano/eSIM
Features
  • Push-to-talk
  • Water Resistant
  • VoIP
  • Corning Gorilla Glass
  • Vibration Alert
  • Non Incendive
  • Gorilla Glass
Drop Specification
  • Exceeds per MIL-STD-810H: 12 ft./3.65 m to concrete
  • Enterprise drop standard 8 ft. (2.4 m) to concrete across temperature (-20°C to 50°C) exceeding MIL-STD-810H
Processor & Chipset
Processor Model QCM4490
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Memory
Standard Memory 6 GB
Flash Memory 128 GB
Memory Card Supported
  • microSD
  • UFS
Display & Graphics
Screen Size 4.3"
Screen Mode WVGA
Screen Resolution 800 x 480
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 43
Keyboard Type Numeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ax
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3 BLE
Near Field Communication (NFC) Yes
Cellular Data Connectivity Technology
  • 5G
  • 4G
  • 3G
  • 2G
  • LTE
  • LTE Advanced
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Front Camera Yes
Front Camera Resolution 8 Megapixel
Rear Camera Yes
Rear Camera Resolution 16 Megapixel
Software
Operating System Android
Upgradable Operating System Android 17
Power Description
Power Source Battery
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.60 V
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Gun
Rugged Yes
Height 7.4"
Width 3.5"
Length 9.4"
Weight (With Battery) 1.64 lb
Miscellaneous
Package Contents
  • MC9400 Handheld Terminal
  • Battery
Application/Usage
  • Warehouse
  • Distribution
  • Logistics
  • Manufacturing
  • Retail
  • Industrial
  • Order Picking
  • Inventory Management
  • Asset Tracking
  • Port
  • Yard
  • Healthcare
Ingress Protection (IP) Rating
  • IP65
  • IP68
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Document produit mc9400-mc9450.pdf MC9401-0G1R6CNS-NA  (PDF)
