Datalogic

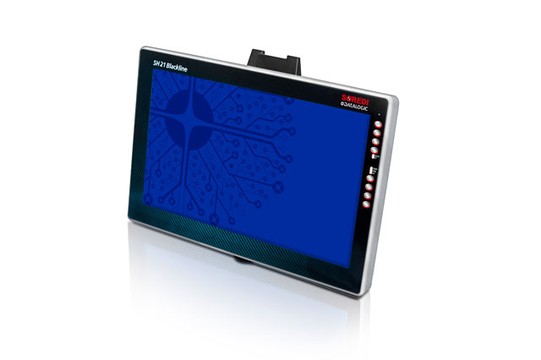

Terminaux de Montage pour Véhicule Datalogic 94S351245

UGS :

94S351245

Vehicle terminal, 53.3 cm (21''), Projected Capacitive, brightness: 400cd, USB (4x), RS232 (2x), Bluetooth (class 4), Ethernet (10/100/1000 Mbit), Wi-Fi (802.11a/b/g/n), HDMI, 1920x1080 pixels, Intel Core i5, 1.8 GHz, RAM: 16 GB, Flash: 32 GB, Win 10 IoT Enterprise, IP65, IP67
Description
ico-plus ico-minus
Datalogic presents the SH15 and SH21 Blackline Mobile Computers, designed for robust industrial applications, both in vehicle-mount and fixed configurations. These cutting-edge devices, featuring a sealed design certified to IP65/IP67, are built to withstand extreme environments. The SH15 enhances productivity in warehouse management with multi-touch capabilities, while the SH21 allows operators to easily access technical documents and interact with machines. Ideal for high-demand settings, both models offer flexible installation options and compatibility with a variety of accessories, ensuring seamless integration into your workflows.
Key features:
  • Rugged Design: Sealed to IP65/IP67 for protection against dust and moisture.
  • Multi-Touch Technology: Capacitive touchscreen that works with gloves.
  • Versatile Mounting: Compatible with various brackets and mounts.
  • Operating Systems: Options for Windows® Embedded Standard 7 or Windows® 10 IoT.
  • Power Supply: Internal DC/AC power options and battery backup.

Specifications:
  • Models: SH15 Blackline and SH21 Blackline
  • Display: SH15: 10.4" XGA; SH21: 21" WUXGA with LED backlight
  • Processor: SH15: Intel Atom Quad Core; SH21: Intel Core i5
  • Memory: SH15: 4GB RAM; SH21: 16GB RAM
  • Wireless Connectivity: Bluetooth 4.0, Wi-Fi 802.11a/b/g/n
  • Operating Temperature: -20 to 55 °C (-4 to 131 °F)
  • Dimensions: SH15: 38.0 x 30.5 x 6.7 cm; SH21: 55.5 x 36.0 x 8.4 cm
  • Weight: SH15: 6.5 kg; SH21: 10.8 kg
  • Warranty: 1-Year Factory Warranty

Caractéristiques principales

  • Système: Windows

  • Robuste: Industrial

  • Connexion: Bluetooth, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Processor & Chipset
Processor Model i5-5350U
Processor Core Dual-core (2 Core)
Processor Type Core i5
Processor Speed 1.80 GHz
Memory
Standard Memory 16 GB
Flash Memory 32 GB
Display & Graphics
Screen Size 21"
Graphics Modes Full HD
Display Screen Type LED
Touchscreen Yes
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Display Resolution 1024 x 768
Network & Communication
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45) Yes
Serial Yes
USB Yes
Power Description
Power Source Power Supply
Software
Operating System Windows 10 IoT
Physical Characteristics
Weight (Approximate) 24.91 lb
Miscellaneous
Certifications & Standards
  • CE
  • FCC
  • IP65
  • IP67
  • EN 60721-3-5: 1998
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Document produit sh15-sh21.pdf 94S351245 Document produit sh15-sh21.pdf MOD-SH15
