Bogen

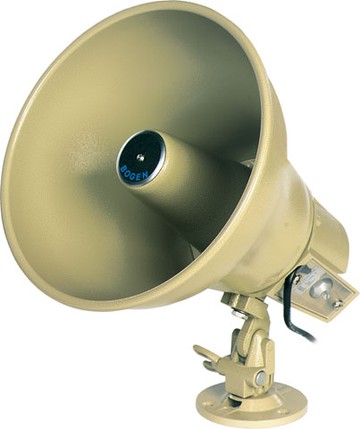

Speakerphones Bogen AH5A

UGS :

AH5A

Bogen AH5A Magaphone - 5 W Amplifier - Built-in Amplifier
Description
ico-plus ico-minus
The Bogen AH5A and AH15A Public Address Equipment offers rugged, weatherproof amplified horn speakers designed for a diverse range of environments, including industrial plants, schools, and recreational areas. These self-contained units feature screwdriver-adjustable volume controls and robust all-aluminum construction, ensuring durability and reliability. The universal mounting brackets provide versatility for optimal positioning, while the 4-conductor, color-coded cable allows for quick connections to audio and power sources. Ideal for effective communication, these models combine power and performance in one reliable package.

Key Features
  • Available Models: 5W (AH5A) and 15W (AH15A) with built-in amplifiers
  • Universal Tilt-and-Swivel Mount: Easily adjust positioning in vertical and horizontal planes
  • Weatherproof Housing: All-aluminum construction for durability in various environments
  • Quick Connections: Includes 4-conductor, color-coded cable for ease of setup
  • Plastic Cover: Protects volume control and provides cable strain relief


Specifications
  • Models: AH5A, AH15A
  • Power Output:
    • AH5A: 5W RMS
    • AH15A: 15W RMS
  • Frequency Response: 275 Hz to 14 kHz
  • Input Impedance: 1000 ohms
  • Operating Voltage: 24V DC
  • Dimensions: 9" Diameter x 9-1/4" D
  • Weight: 4 lb.
  • Dispersion: 110°
  • Finish: Textured mocha enamel
Technical Specifications
ico-plus ico-minus
Technical Information
Built-in Amplifier Yes
Amplifier Power Output 5 W
Power Description
Power Source Battery
Input Voltage 24 V DC
Physical Characteristics
Width 9"
Depth 9.3"
Weight (Approximate) 4 lb
Miscellaneous
Durability Weather Proof
Additional Information
  • Frequency: 275 Hz to 14 KHz
  • Universal tilt and swivel mount
  • Banding slots easily secure horns to beams and pillars
  • 4-conductor color coded cable for quick connections to audio and power sources
  • Plastic cover protects volume control and provide cable strain relief
  • All-aluminum housing
  • Self-aligning field replaceable diaphragm
  • Speaker and brackets have textured mocha enamel finish
  • Mountable to l-beam flange using beam clamp
  • Mountable to electrical box using mounting strap
  • Terminal Cover allows connection of conduit fittings to horn speakers
Documents
ico-plus ico-minus
Document produit ah5a-ah15a.pdf AH5A Document produit ah5a-ah15a.pdf MOD-BOGEN-AH5A
