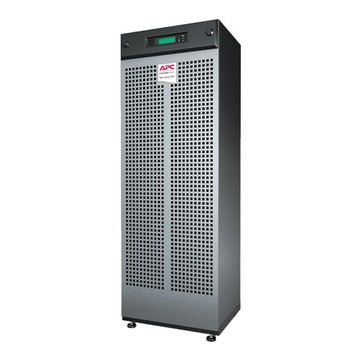

Power Supply APC G35T15KF4B4S

The APC MGE Galaxy 3500 UPS is a cutting-edge power protection solution designed for mission-critical applications in commercial and industrial environments. With an astonishing efficiency of **94%**, this UPS features a compact and robust design that optimizes space without compromising performance. Its modular architecture, complete with **hot-swappable batteries**, simplifies deployment and maintenance, ensuring reliability in demanding settings. The dual mains input and built-in maintenance bypass switch enhance system availability, making it an excellent choice for facility managers seeking cost-effective power management solutions.

Key Features

• **Double Conversion On-Line Topology**
• **Best-in-class efficiency (94%)**
• **Hot-swappable batteries for ease of maintenance**
• **Parallel capability allowing up to 4 units**
• **IP 51/NEMA 12 rating for rugged conditions**
• **Built-in environmental monitoring card**

Specifications

• Rated Power: 10/15/20/30 KVA
• Input Voltage (V): 208 V (Three phase + Neutral)
• Input Power Factor: >0.98
• Efficiency: 93.8% at full load
• Dimensions (HxWxD):
  • Narrow Tower: 1500x352x854 mm
  • Wide Tower: 1500x523x854 mm
• Weight:
  • Narrow Tower (with 1 Battery Module): 873 lbs
  • Wide Tower (with 2 Battery Modules): 913 lbs
• Operating Temperature: 0°C to 40°C
• Protection Class: IP 51/NEMA 12
