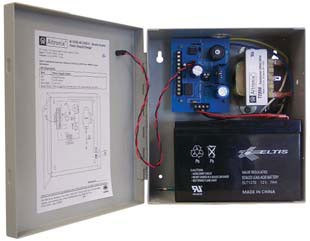

Power Supply Altronix AL125UL

The **Altronix AL125UL Power Device** is a robust power supply and charger, designed to convert 115VAC input into two PTC protected 12VDC or 24VDC outputs. Ideal for access control applications, this UL-listed device also interfaces seamlessly with Fire Alarm Control Panels, ensuring safety and compliance. With built-in battery backup capabilities, it automatically switches to standby batteries during AC failure, making it a dependable choice for critical systems.
Key Features

• Flexible Output Options: Two individually PTC protected 12VDC or 24VDC outputs.
• Battery Backup: Built-in charger with automatic switch over in case of AC failure.
• LED Status Indicators: Easily monitor power supply and unit status.
• Supervised Fire Alarm Disconnect: Ensures safety protocols are maintained during emergencies.

Specifications

• Input: 115VAC 50/60 Hz, 0.6 amp (AL125UL, AL125ULX), 24VAC @ 40VA (AL125ULP, AL125ULE).
• Output:
  • Two 12VDC or 24VDC outputs.
  • 1 amp total supply current @ 12VDC or 24VDC (AL125UL & AL125ULX).
  • 0.5 amp total supply current @ 24VDC (AL125ULP & AL125ULE).
• Battery Backup: Maximum charge current: 400mA, supports sealed lead-acid or gel type batteries.
• Enclosure Dimensions: 8.5"H x 7.5"W x 3.5"D for models AL125UL, AL125ULP, AL125ULE; 13"H x 13.5"W x 3.25"D for AL125ULX.
• Agency Listings: UL Listed for Access Control Systems (UL294), MEA NYC Department of Buildings Approved.
